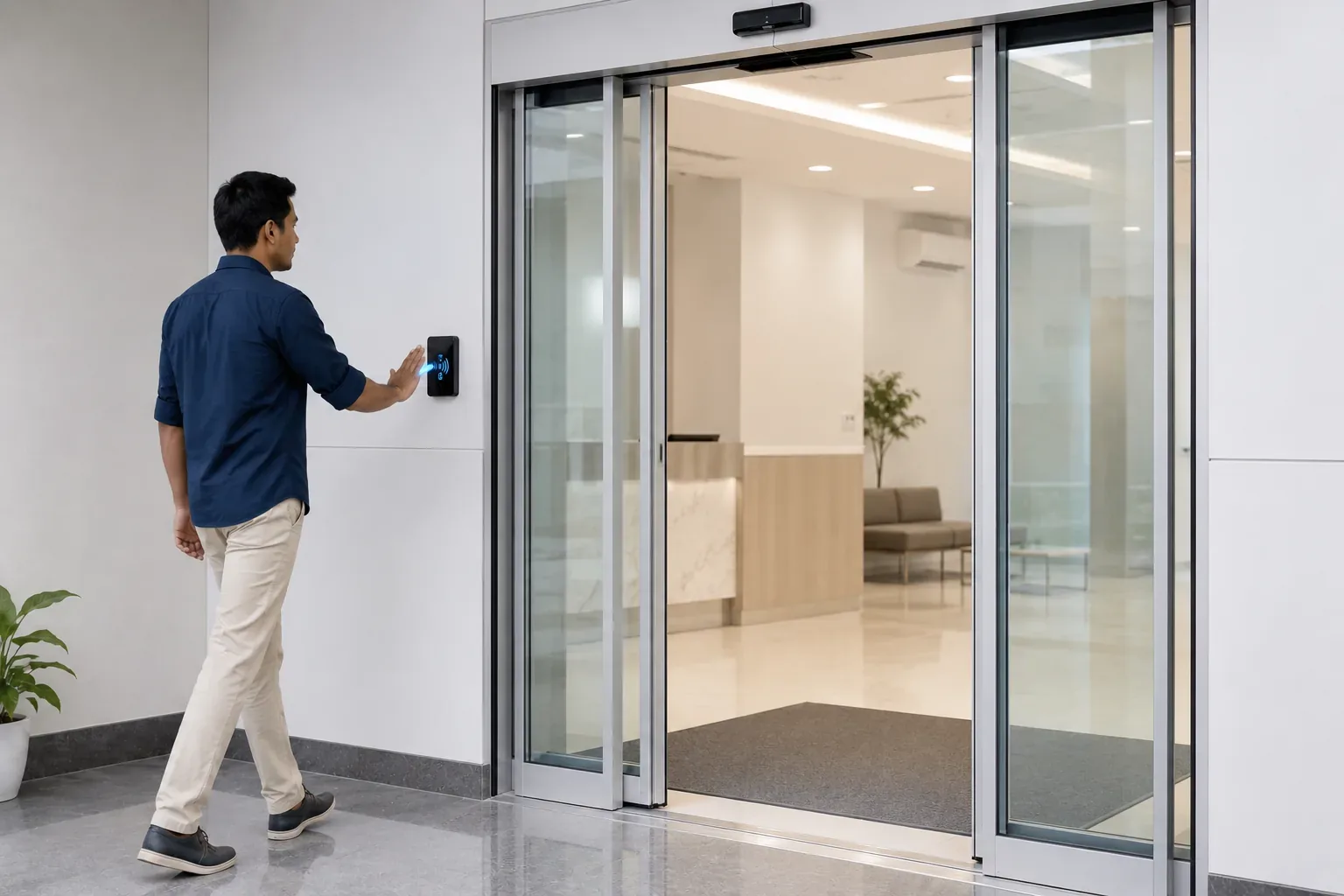

Touchless Automatic Door
A touchless automatic door opens on a contact-free hand wave, eliminating shared-surface transmission at the entrance. The wave switch mounts either side and operates through gloves — the preferred choice for clinics, labs, kitchens and clean rooms.
| Activation | wave switch |
| Contact | zero-touch |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
Sensor Doors Engineered for Hands-Free Access
Six engineering advantages that make Yadav Entrance Automation sensor doors and automatic doors the preferred choice for hospitals, hotels, malls and corporate entrances across India.
Microwave & PIR Motion Sensing
Every sensor door combines a microwave motion sensor for approach detection with PIR presence sensors that hold the door open while someone stands in the threshold. Dual-technology sensing eliminates false triggers and ghost openings at busy entrances.
Touchless Wave Activation
A touchless automatic door opens on a hand wave — no push plate, no contact, no shared surface. Ideal for hospitals, labs and food-grade areas where hygiene matters, the wave switch mounts either side and works through gloves.
Safety Light-Curtain Protection
An infrared safety light-curtain spans the opening and presence sensors guard the threshold, instantly reversing the leaves if a person or trolley is detected during travel. Soft-start and soft-stop motion eliminates impact and pinch risk.
Battery Backup & Break-Out Egress
On power failure the automatic door drives open or remains operable on battery backup, and break-out leaves swing outward by hand for fire egress. The combination keeps every exit compliant and safe during emergencies.
Toughened Glass Automatic Doors
Automatic glass doors use 10–12mm toughened glass leaves in slimline aluminium or frameless patch-fitting, delivering a clean, premium entrance. Clear opening widths from 900mm single to 3,000mm bi-parting suit any façade.
Pan-India Install & AMC
Our service network installs and maintains automatic doors nationwide, with Annual Maintenance Contracts carrying a 4-hour emergency response SLA. One vendor for manufacture, installation, spares and service — no middlemen.
Where Sensor & Automatic Doors Are Used
Yadav Entrance Automation sensor doors are deployed across India's healthcare, hospitality, retail and corporate sectors — each with specific hygiene, traffic and fire-egress requirements our engineers address at specification stage.
Hermetic hospital automatic doors for theatres, ICUs and clean rooms with touchless, hands-free access for infection control
Premium automatic glass doors at lobbies and entrances delivering a welcoming, climate-sealed arrival experience
High-traffic motion sensor doors that handle continuous footfall while conserving conditioned air at the storefront
Sensor doors integrated with access control for secure, hands-free entry at reception and lift lobbies
Bi-parting automatic doors with wide clear openings for baggage trolleys and crowd flow at terminals and stations
Touchless automatic doors with sealed gaskets for clean rooms and GMP areas requiring pressure and contamination control
Frameless glass automatic doors combining a premium look with break-out fire egress and access integration
Touchless wave-activated doors between front-of-house and kitchen for hands-free, hygienic passage carrying trays
Touchless Automatic Door — Technical Specifications
Complete engineering data for the Yadav Entrance Automation automatic door range. All systems are built to order — opening width, leaf weight, activation and finish are configured to your application.
| Parameter | Specification |
|---|---|
| Door Configuration | Single-slide or bi-parting (telescopic on request) |
| Activation | Microwave + PIR motion sensor; touchless wave switch; access control optional |
| Leaf Weight | 80 kg / 100 kg / 120 kg / 150 kg per leaf |
| Clear Opening Width | 900mm – 3,000mm (single 900–1,400mm; bi-parting up to 3,000mm) |
| Leaf Material | 10–12mm toughened glass; aluminium framed; SS hermetic (hospital) |
| Operator | Brushless DC motor with toothed-belt drive; soft start / soft stop |
| Opening Speed | Adjustable up to 0.6 m/s; closing speed up to 0.5 m/s |
| Power Supply | 230V single-phase, 50 Hz; ~150 W typical draw |
| Battery Backup | Standard — drives open or holds operable on mains failure |
| Fire Egress | Break-out leaves swing outward by hand for emergency exit |
| Safety Devices | Infrared safety light-curtain, threshold presence sensors, anti-trap reversal |
| Hospital / Hermetic Option | SS frame, sealed perimeter gaskets, antibacterial powder-coat finish |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 2 years operator & sensors, 5 years frame structure |
What the Touchless Automatic Door is, and who it suits
The Touchless Automatic Door is a type of automatic & sensor doors used across warehouses, factories, cold stores and commercial buildings. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Automatic & Sensor Doors range, the sectors we serve, or every product line.
- Warehouse and distribution-centre openings
- Factory and production-floor entrances
- Cold stores and temperature-controlled rooms
- Clean rooms and pharmaceutical areas
- Loading bays and dispatch docks
- Commercial building entrances
- Clear opening width and height (the daylight opening, not the wall opening)
- Lintel / headroom above the opening
- Side-room free each side for guides and motor
- Power available at the opening — 230V single-phase or 415V three-phase, 50 Hz
- Approximate cycles per day
- Any fire-rating, temperature or hygiene requirement
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Touchless Automatic Door — Engineered & Supported Across India
The Touchless Automatic Door is manufactured and supported entirely within India. As an Indian manufacturer of automatic & sensor doors, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, factories, cold stores and commercial buildings — variable power supply, high ambient temperatures, dust and monsoon humidity — and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities — qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor — Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi — and the Gujarat industrial belt — Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Automatic & Sensor Door Variant Comparison
| Door Type | Sensor / Activation | Sensor Door ⭐ Most Popular | Leaf Weight / Width | Best Use | Fail-Safe |
|---|---|---|---|---|---|

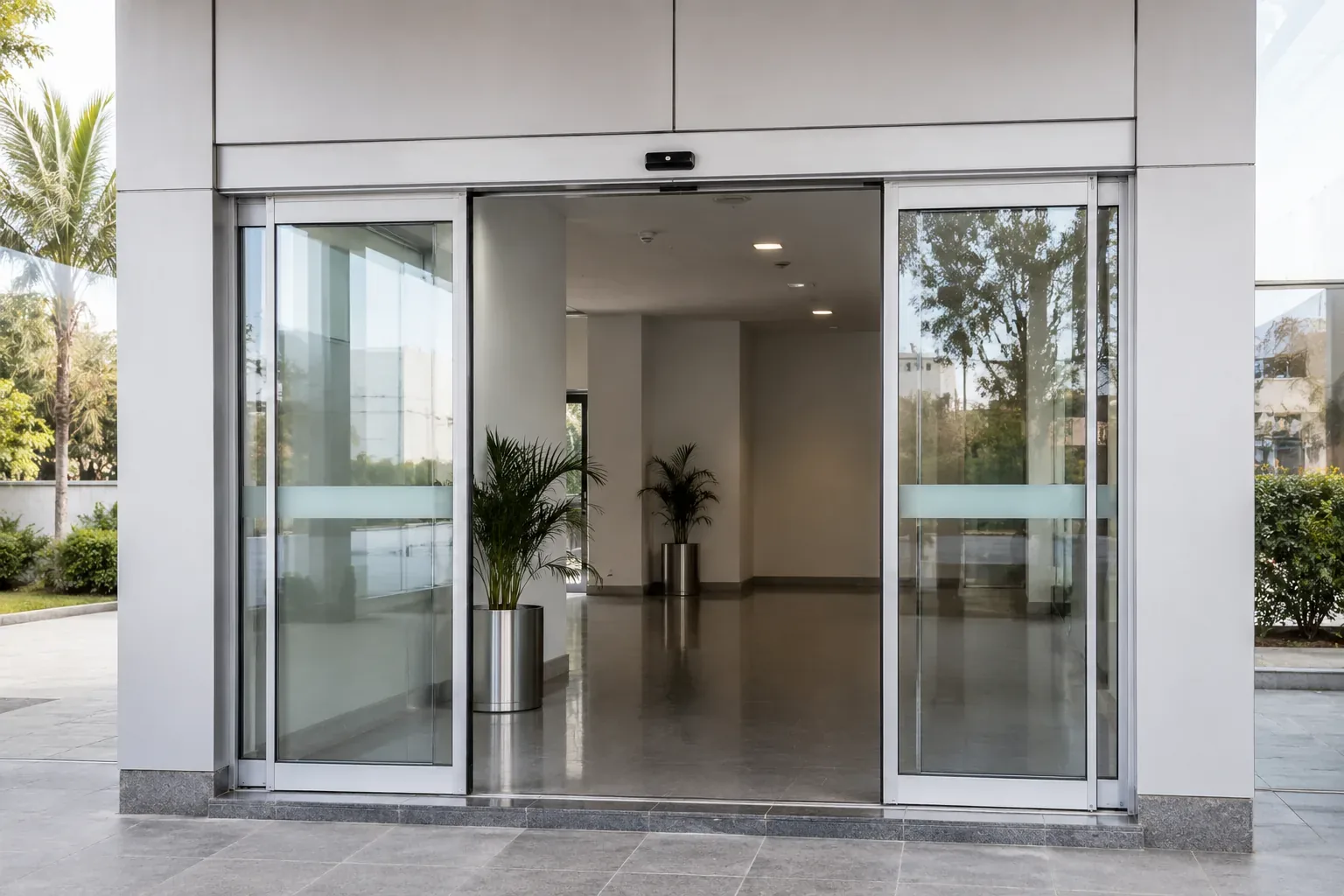

| Sensor Door | Microwave + PIR | Sliding operator | 80–120 kg / up to 2,400mm | Commercial entrance | Battery + break-out |

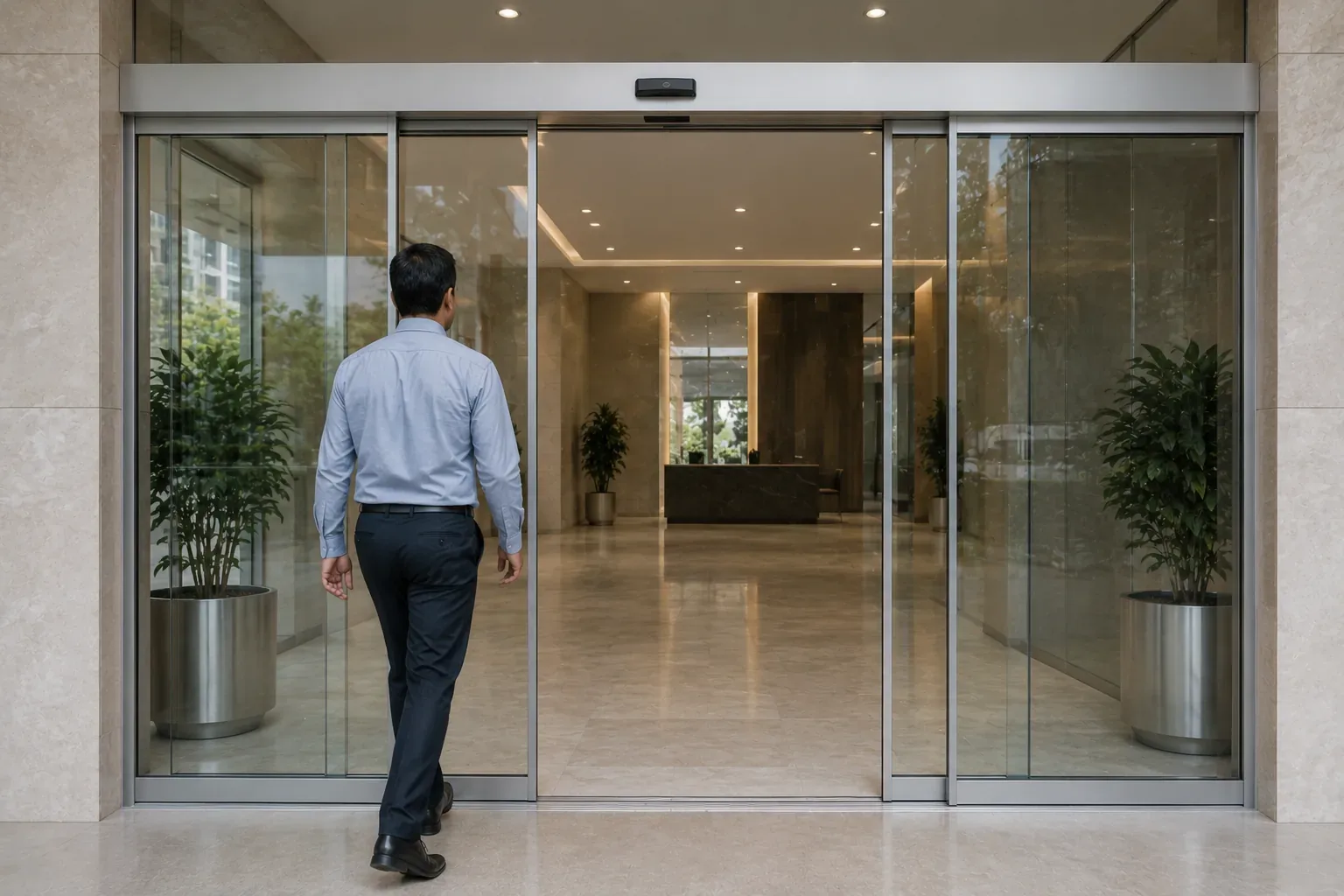

| Motion Sensor Door | Dual-technology | Bi-parting | 100–150 kg / up to 3,000mm | Malls, airports | Battery + break-out |
| Touchless Automatic Door | Wave switch | Single / bi-parting | 80–120 kg / up to 2,400mm | Clinics, kitchens | Battery backup |

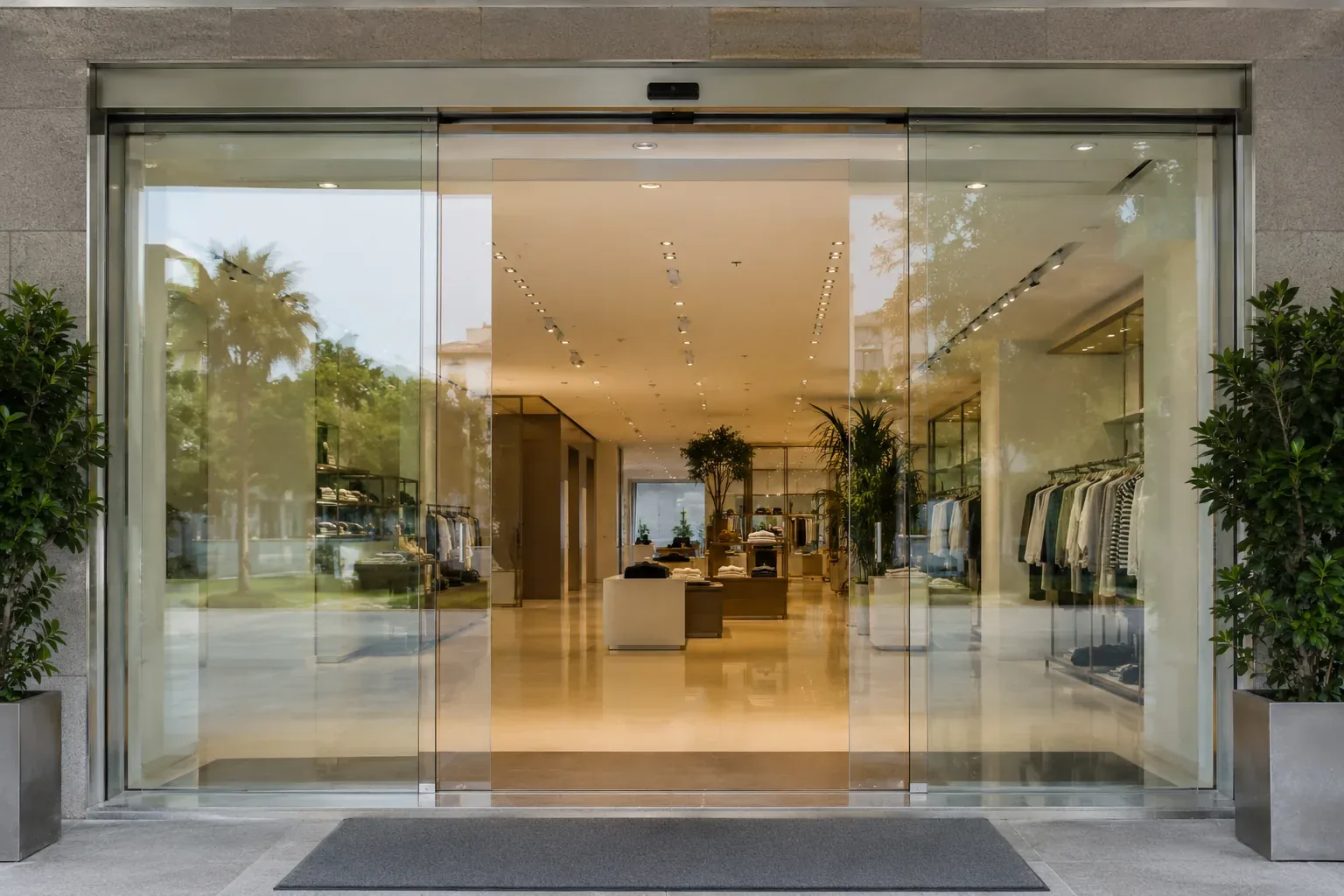

| Glass Automatic Door | Microwave + PIR | Frameless glass | 100–150 kg / up to 3,000mm | Hotels, banks, retail | Battery + break-out |
| Hospital Automatic Door | Touchless wave | Hermetic SS frame | 120–150 kg / up to 2,400mm | OT, ICU, clean room | Battery + manual override |
Certified to International Standards
Our automatic and sensor door range carries the certifications required by India's leading hospitals, hotel groups, retail chains and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all automatic and sensor doors.
European conformity per EU Machinery Directive 2006/42/EC — required by multinational clients and confirming safety compliance.
16005
Power-operated pedestrian door safety standard — light-curtain, presence sensing and force limits for safe automatic door use.
2016
Break-out fire egress and installation methodology compliant with the National Building Code of India 2016 for safe exits.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Touchless Automatic Door — Frequently Asked Questions
Is the Touchless Automatic Door manufactured in India?
Which regions do you install and service in?
What power supply does the Touchless Automatic Door need?
Do you provide installation, spares and AMC?
How do I get a quote for the Touchless Automatic Door?
Is the Touchless Automatic Door certified?
