Rolling Shutters — Motorized, Aluminium & Galvanized
Yadav Entrance Automation is a leading rolling shutter manufacturer in India, building India's most comprehensive range of rolling shutter doors — from powder-coated mild steel to motorized aluminium and galvanized rolling shutter profiles. Searching for a "rolling shutter near me"? Every shutter door is engineered for commercial and industrial use with 15+ years of proven reliability across retail, industrial and high-security applications.
| Lath Profile | 77mm / 92mm extruded aluminium or galvanized steel |
| Maximum Width | 18,000 mm (multi-curtain option available) |
| Drive Options | Manual (gear/handle) / Electric single or three phase |
| Wind Load | 55 km/h to 100 km/h (grade dependent) |
Built for India's Industrial Demands
From dusty factory floors to high-humidity coastal warehouses, Yadav rolling shutters are specified and manufactured for real-world Indian conditions.
Every Material Grade — One Manufacturer
Mild steel for economy, GLUIM pre-galvanized for humidity resistance, hot-dip galvanized for coastal installations, extruded aluminium for corrosion-free applications, and double-layer aluminium for high-security premises. One vendor, all grades.
Smart Motorization — App, Card & Remote
Motorized rolling shutter models integrate with RF remote (standard), access card readers (Wiegand/RFID), loop detectors for vehicle-activated operation, and an optional GSM module for smartphone control. Timer scheduling for unmanned operation.
18m Width — No Visible Joints
Our CNC roll-forming line produces lath lengths up to 10m. For wider openings, our invisible multi-curtain system uses an intermediate guide post that is recessed into the floor, maintaining a clean facade appearance.
200+ RAL Colours — Exact Brand Match
Our in-house powder coat facility handles custom RAL colours. Submit your brand colour code or Pantone reference and we'll produce a colour match sample within 5 working days before full production begins.
Wind Lock — Standard on All Motorized Models
Retractable polypropylene wind locks engage in the guide channels above the 2m height mark. Prevents curtain flutter and edge damage in wind speeds up to 100 km/h without requiring additional bracing or structural work.
Security-Grade Options — Anti-Jacking Locks
Our high-security MS range includes anti-jacking locks that prevent the curtain being forced upward. Available with double locking bottom bar, cylinder lock integration, and reinforced guide channels for maximum intrusion resistance.
Lath Profile Reference
Visual comparison of our three primary lath materials. All profiles available in 77mm and 92mm depth.
Types of Rolling Shutters We Manufacture
Ten rolling shutter configurations covering every retail, industrial, security and specialty application. Each rolling shutter door is built to order — tell us your opening size, material grade and drive type and we engineer to match.
Economy
Manual Rolling Shutter
A gear- or push-up operated manual rolling shutter for shopfronts and small bays where economy and reliability matter most. No power needed — the spring-counterbalanced curtain lifts smoothly by hand or single-gear handle.
View details
Most Popular
Motorized Rolling Shutter
A motorized rolling shutter with a tubular or side shutter motor and electric controls — RF remote, push-button station and access-card integration. Ideal for large or high-cycle openings where hands-free operation and security matter.
View details
Heavy Duty
Industrial Rolling Shutter
A heavy-duty industrial rolling shutter for warehouse and factory bay openings up to 18m wide. 1.6mm steel laths, reinforced guide channels and wind-lock systems withstand high wind loads and demanding daily cycles.
View details
Thermal
Insulated Rolling Shutter
A PUF-filled double-layer insulated rolling shutter that provides a thermal break for cold storage, godowns and temperature-controlled entry points. Reduces heat ingress and condensation while sealing tightly at the guide channels.
View details
Ventilated
Perforated Rolling Shutter
A perforated rolling shutter with punched or grille-style laths giving partial visibility and ventilation while staying secure. Popular for retail showrooms, malls and parking entries that need airflow and a view-through after hours.
View details
Transparent

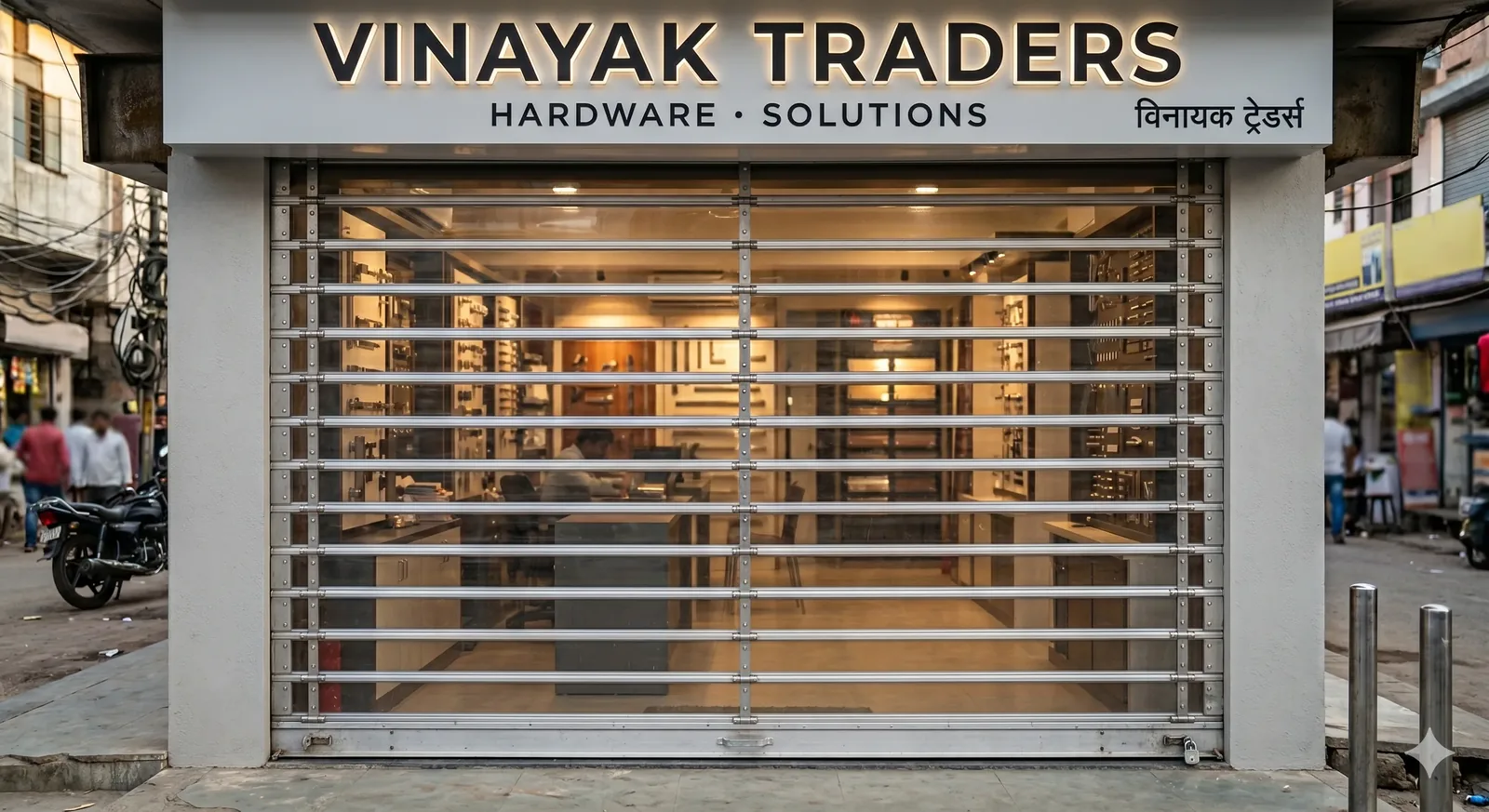

Polycarbonate / Transparent Rolling Shutter
A polycarbonate transparent rolling shutter combining aluminium frames with clear PVC or polycarbonate vision panels. Lets shopfronts display merchandise while closed, with full security and weather sealing.
View details
Life Safety
Fire Rated Rolling Shutter
A fire rated rolling shutter that resists fire spread for 60–120 minutes, compartmentalising openings in warehouses, basements and high-rise buildings. Auto-closes on fire alarm signal and meets NBC 2016 and IS standards.
View details
High Cycle

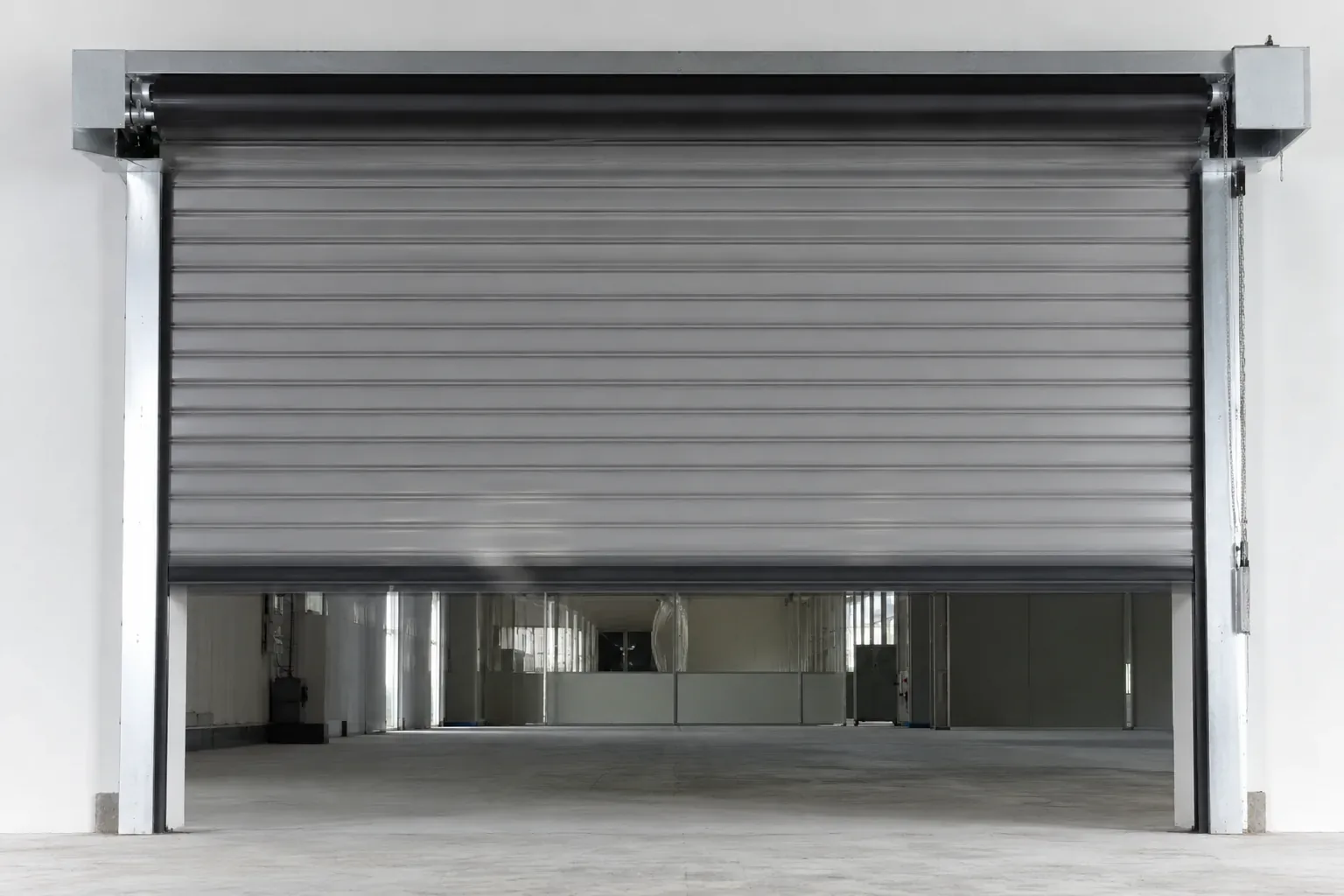

High-Speed Rolling Shutter
A high-speed rolling shutter that opens at up to 1.5–2.0 m/s to cut energy loss and speed forklift traffic at busy bays. Self-repairing curtain options and high cycle ratings suit cleanrooms, cold stores and logistics hubs.
View details
Corrosion Resistant

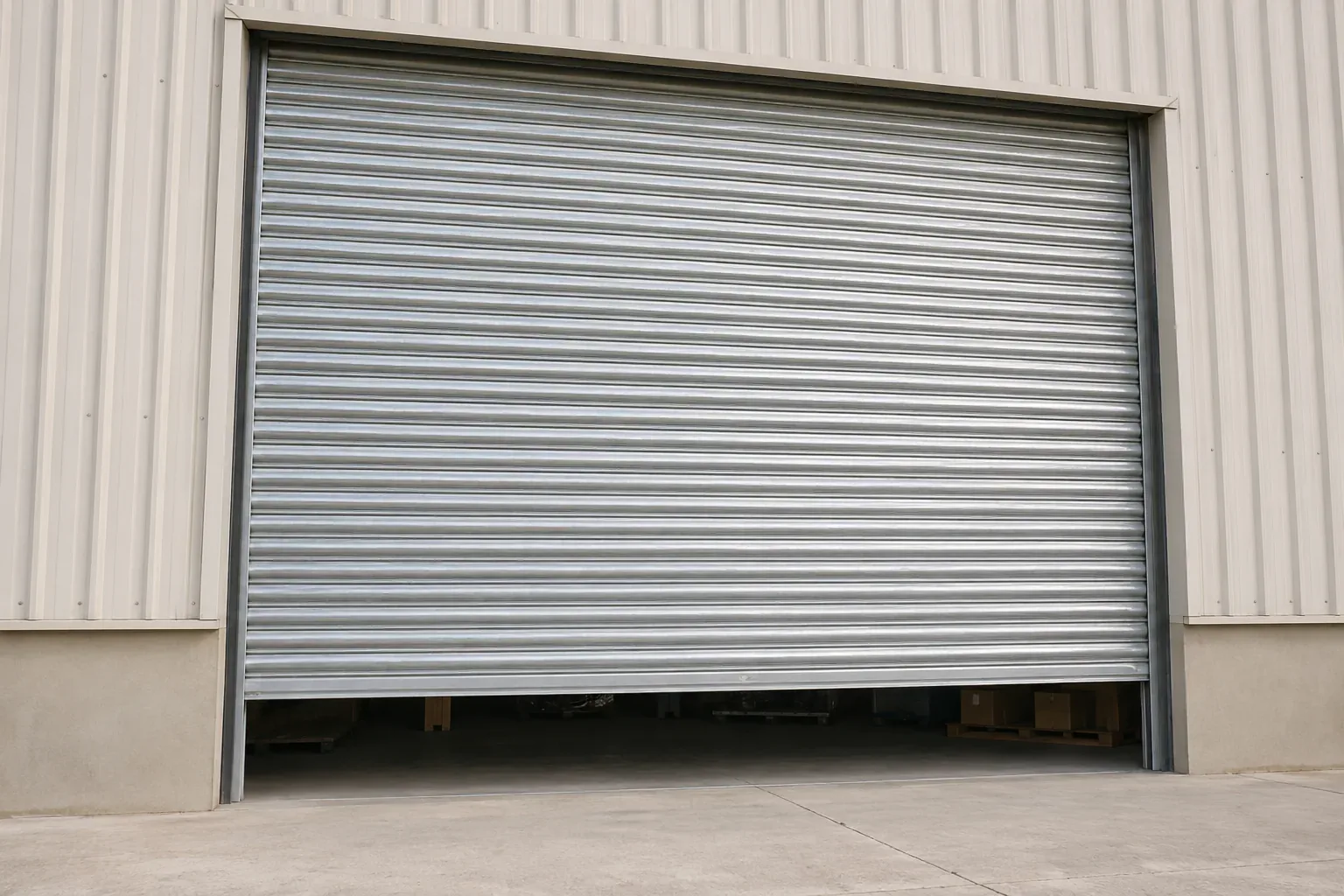

Galvanized Steel Rolling Shutter
A galvanized rolling shutter using GLUIM pre-galvanized or hot-dip galvanized steel laths for excellent corrosion resistance in humid and coastal environments. Strong, durable and low-maintenance for service stations and industrial sites.
View details
Lightweight

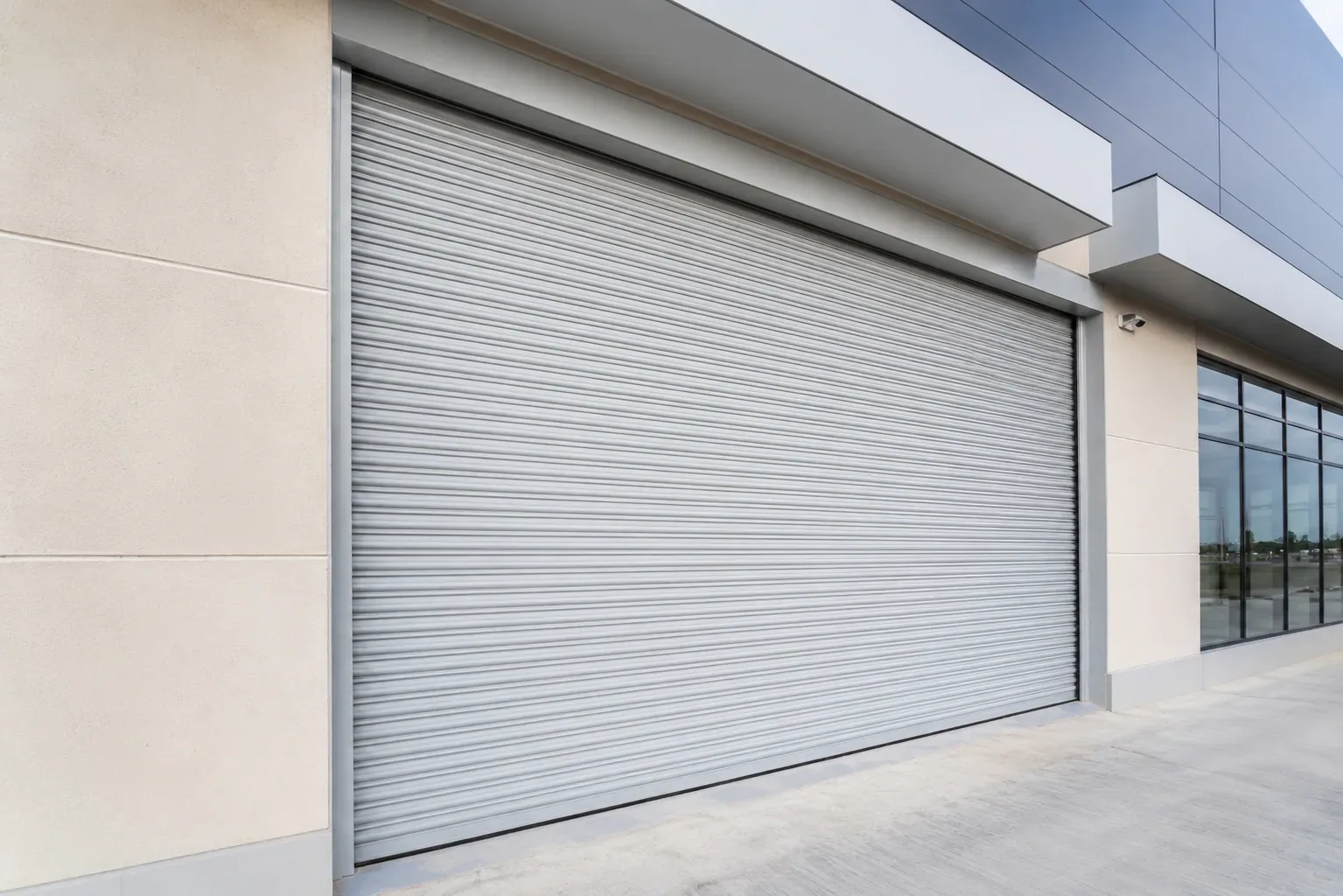

Aluminium Rolling Shutter
An aluminium rolling shutter with extruded 6063-T5 laths — lightweight, corrosion-free and available anodized or in 200+ powder-coat RAL colours. The premium choice for commercial shopfronts, offices and coastal installations.
View detailsApplications Across Every Sector
The rolling shutter is one of India's most versatile industrial closures. Our ten variants cover every sector from neighbourhood retail to high-security defence establishments.
Aluminium or transparent shutters for shopfronts. Anodized or powder coat finish to match brand identity. Remote operation.
Heavy-duty galvanized MS shutters for large bay openings. 1.6mm lath for maximum strength against forced entry and wind.
Motor-grade GLUIM shutters for petrol pump canopies and service bay closures. Weather sealed, corrosion resistant.
Aluminium shutters for malls, offices, and mixed-use complexes. Perforated lath option for partial visibility and ventilation.
Insulated double-layer aluminium shutters for cold chain facilities. PUF-filled lath option for thermal break at entry points.
Wind-rated 100 km/h aluminium shutters for exposed airport locations. SS304 hardware for coastal corrosion resistance.
Gear-operated or motorized MS shutters for multi-level parking entry/exit. Loop detector or intercom integration.
Anti-jacking MS shutters with double locking bottom bar. Reinforced 3mm guide channels. Alarm integration available.
Full Technical Specifications
Complete engineering data for the rolling shutter range. Specifications listed are for standard Motorized Aluminium — other variants differ in material and drive parameters.
| Parameter | Specification |
|---|---|
| Lath Profile Height | 77mm standard / 92mm heavy-duty |
| Lath Thickness — Steel | 0.8mm (economy) / 1.2mm (standard) / 1.6mm (heavy) |
| Lath Thickness — Aluminium | 1.2mm (standard) / 1.5mm / 2.0mm (heavy) |
| Maximum Single Width | 10,000 mm (single curtain, no intermediate post) |
| Maximum Width (Multi-Curtain) | 18,000 mm (with flush intermediate guide post) |
| Maximum Height | 8,000 mm |
| Drive — Manual | Gear handle (single gear) or push-up (light duty) |
| Drive — Electric | Single-phase 230V or three-phase 415V tubular motor |
| Motor Power Range | 0.25 kW (up to 3m × 3m) to 2.2 kW (large bays) |
| Operating Speed — Motorized | 6–10 m/min (adjustable via limit switches) |
| Daily Cycle Rating | 20–50 cycles per day (standard); 50+ cycles heavy duty |
| Control Options | Push button (standard) / RF remote / Loop detector / Timer / GSM |
| Wind Load — Standard | 55 km/h (MS standard) / 80 km/h (aluminium) / 100 km/h (reinforced) |
| Bottom Beam | Extruded aluminium with EPDM sealing strip; galvanized steel option |
| Side Guide Channels | 1.5mm / 2mm / 3mm rolled steel or aluminium |
| Finish — Steel | Hot-dip galvanized (85 micron) or powder coat (60–80 micron) |
| Finish — Aluminium | Mill finish / anodized (20 micron) / powder coat (custom RAL) |
| Spring Counterbalance | Pre-tensioned torsion spring; Helical spring on manual large bays |
| Drum Barrel | 76mm dia. (light) / 102mm dia. (standard) / 152mm dia. (heavy) |
| Shaft | Solid 25mm / 32mm / 50mm hex steel shaft depending on size |
| IP Rating — Motor | IP44 standard / IP55 optional (outdoor / washdown) |
| Certifications | ISO 9001:2015; BIS Mark (selected MS models); IS 6248 compliant |
| Warranty | 2 years motor, 3 years structure, 1 year surface finish |
Rolling Shutter Variant Comparison
| Feature | Motorized Aluminium ⭐ Most Popular | Powder Coated M.S. | GLUIM Galvanized | Transparent |
|---|---|---|---|---|
| Material | Extruded 6063-T5 Aluminium | Mild Steel (IS:513) | Pre-galvanized steel | Aluminium + PVC vision |
| Lath Thickness | 1.2mm – 2.0mm | 0.8mm – 1.6mm | 0.8mm – 1.2mm | 1.2mm (fixed) |
| Max Width | 18,000mm (multi) | 18,000mm (multi) | 12,000mm | 6,000mm |
| Corrosion Resistance | Excellent | Moderate (with coat) | Very Good | Excellent |
| Weight (per m²) | ~4.5 kg/m² | ~7–12 kg/m² | ~8–10 kg/m² | ~3.8 kg/m² |
| Best For | Commercial / Coastal / High-cycle | Industrial, godowns, low budget | Humid / coastal industrial | Retail shopfront, visibility |
| Motorization Available | Yes (standard on this variant) | Yes (add-on) | Yes (add-on) | Yes (standard) |
Certified Quality You Can Rely On
9001
Certified quality management system covering all manufacturing and installation processes for our complete rolling shutter range.
Bureau of Indian Standards mark on selected mild steel shutter models. Required for government and PSU procurement under IS 6248.
6248
Indian Standard for metallic rolling shutters and rolling grilles. Compliance ensures structural integrity and material quality standards are met.
India
100% manufactured at our Indian facility. DPIIT registered. Eligible for government procurement preferences and Class-I local supplier designation.
2016
Compliant with National Building Code 2016 provisions for industrial closures. Required for building plan approvals and occupancy certificates.
Built Accurately to Your Opening
Manufactured in India — Zero Import Dependency
Our CNC roll-forming lines run all material grades in-house. No delays from import disruptions.
Free Measurement & Site Assessment
We send a technician to measure your openings and check structural suitability — free of charge anywhere in our service areas.
Turnkey Supply & Install — One Invoice
Material, motor, civil work, wiring, and commissioning all covered under a single project invoice. No sub-contractor surprises.
Choosing rolling shutters: what actually decides the specification
A rolling shutter is a steel or aluminium curtain that coils above the opening on a barrel. The right one is decided by the opening and how it is used, not by the catalogue. These are the things worth settling before anyone quotes.
What to measure
- Clear opening width and height — the daylight opening the vehicle or person passes through, not the hole in the wall.
- Headroom above the opening — decides which products are possible at all.
- Side-room, both sides — guides, tracks and motors live here, and it is rarely equal on both sides.
- Power at the position — 230V single-phase or 415V three-phase, 50 Hz.
- Cycles per shift — the most under-specified figure on a typical enquiry.
- Environment — temperature, dust, washdown, coastal air or a hygiene requirement.
The full rolling shutters range
- Manual Rolling Shutter — A gear- or push-up operated manual rolling shutter for shopfronts and small bays where economy and reliability matter most.
- Motorized Rolling Shutter — A motorized rolling shutter with a tubular or side shutter motor and electric controls — RF remote, push-button station and access-card integration.
- Industrial Rolling Shutter — A heavy-duty industrial rolling shutter for warehouse and factory bay openings up to 18m wide.
- Insulated Rolling Shutter — A PUF-filled double-layer insulated rolling shutter that provides a thermal break for cold storage, godowns and temperature-controlled entry points.
- Perforated Rolling Shutter — A perforated rolling shutter with punched or grille-style laths giving partial visibility and ventilation while staying secure.
- Polycarbonate / Transparent Rolling Shutter — A polycarbonate transparent rolling shutter combining aluminium frames with clear PVC or polycarbonate vision panels.
- Fire Rated Rolling Shutter — A fire rated rolling shutter that resists fire spread for 60–120 minutes, compartmentalising openings in warehouses, basements and high-rise buildings.
- High-Speed Rolling Shutter — A high-speed rolling shutter that opens at up to 1.
- Galvanized Steel Rolling Shutter — A galvanized rolling shutter using GLUIM pre-galvanized or hot-dip galvanized steel laths for excellent corrosion resistance in humid and coastal environments.
- Aluminium Rolling Shutter — An aluminium rolling shutter with extruded 6063-T5 laths — lightweight, corrosion-free and available anodized or in 200+ powder-coat RAL colours.
Where rolling shutters are typically installed
We build rolling shutters for factory entrances, godowns, service yards, shopfronts and warehouse openings.
Sectors we supply
- Warehousing and logistics — distribution centres, 3PL facilities and dispatch docks.
- Cold chain — cold stores, freezer rooms and temperature-controlled dispatch.
- Automotive and engineering — component plants, press shops and assembly lines.
- Pharmaceutical and clean manufacturing — controlled and hygiene-critical areas.
- Infrastructure and construction — plant perimeters, site structures and civil scopes.
- Commercial and institutional — offices, campuses, hospitals and parking facilities.
What drives the cost
We quote per project rather than publishing prices. The figure moves with the opening size, the slat material and finish, whether it is manual or motorised, and the duty cycle. Send the measurements above and an engineer returns a drawing and a written quotation. Talk to an engineer →
Standards, materials and what we certify
- ISO 9001 — our quality management system is certified to it.
- CE marking on applicable products — a manufacturer's declaration of conformity, not a quality grade.
- IS 2062 structural steel for fabrication, gates and structures.
- IS 6248 for metal rolling shutters.
- EN 1634 as the reference for fire-resistance testing.
- Make in India and GST registered — relevant to government and PSU procurement.
- 230V single-phase / 415V three-phase, 50 Hz — standard Indian industrial mains.
Reference sources: European Commission, CE marking · Bureau of Indian Standards
From enquiry to handover
- Enquiry. Opening sizes, site location and application. An engineer picks it up.
- Site survey. We measure the clear opening, headroom, side-room and power position.
- Drawing and quotation. Equipment, safety schedule, electrical requirement and a written delivery date.
- Manufacture at Neemrana. Built to the approved drawing and the measured opening.
- Installation and commissioning. Fitted and tested by our own team through full travel with safety devices live.
- Handover, spares and AMC. Operating instructions on site, then service through the nearest team.
Explore the full product range, the sectors we serve, our delivered installations, or the areas we cover.
Rolling Shutters — frequently asked questions
Who manufactures rolling shutters in India?
Yadav Entrance Automation Pvt. Ltd. manufactures rolling shutters in India, at our plant at Neemrana, Rajasthan on the Delhi-Jaipur NH-48 corridor. We have been building entrance automation equipment since 2011, with more than 500 installations across over 50 cities. Equipment is made to the measured opening rather than to a catalogue size, then installed and commissioned by our own engineers.
What is a rolling shutter?
A rolling shutter is a steel or aluminium curtain that coils above the opening on a barrel. It is specified against the opening it serves and the way that opening is used, so two openings of the same width can need different equipment. We build rolling shutters for factory entrances, godowns, service yards, shopfronts and warehouse openings.
What does a rolling shutter cost?
We quote per project rather than publishing a price, because the figure moves with the opening size, the slat material and finish, whether it is manual or motorised, and the duty cycle. Send the opening dimensions, the site location and how the opening is used, and an engineer will come back with a drawing and a written quotation. That is faster than a list price that would need revising once the site is measured.
Do you supply rolling shutters near me?
We install and service across North and West India, with the plant at Neemrana and teams in Delhi NCR and Gujarat. Installations to date cover more than 50 cities, concentrated in the Delhi-Jaipur corridor, Haryana, Rajasthan and Gujarat. Tell us the site location with your enquiry and we will confirm coverage before quoting.
Can rolling shutters be motorised or automated?
Yes, where the product supports it. Motorised operation is specified against the weight being moved and the number of cycles per day, not simply added on. The drive, the control panel and the safety devices are listed on the technical drawing you approve before manufacture, so nothing about the automation is a surprise on site.
What power supply is needed?
Standard Indian industrial mains: 230V single-phase or 415V three-phase at 50 Hz. Which one applies depends on the product, the size of the opening and the duty cycle. The requirement is confirmed on the approved drawing so your electrical contractor can position the supply and isolator before delivery.
What measurements do you need to quote for rolling shutters?
Clear opening width and height first — the daylight opening, not the wall opening. Then the headroom above the opening and the free side-room each side. Add the power available at the position, how many openings, and roughly how often each is used in a shift. Those figures let an engineer rule out the wrong products before visiting.
Do you handle installation, or only supply?
We manufacture, install and commission with our own team, and we do not sub-contract installation of our own equipment. How well a unit is fitted to its opening decides how long it lasts, so it is not work we hand off. Handover includes operating instructions on site.
Do you provide service, spares and AMC?
Yes. We supply genuine spares and offer Annual Maintenance Contracts for the equipment we manufacture. On high-cycle equipment maintenance matters more than most buyers expect, because wear tracks cycles rather than calendar age. Tell us the site and the equipment and we will route it to the nearest service team.
Which standards and certifications apply?
Our manufacturing is certified to ISO 9001 and applicable products are CE marked. Structural steelwork commonly references IS 2062 and rolling shutters IS 6248, both published by the Bureau of Indian Standards; fire-resistance testing is commonly referenced to EN 1634. If your specification names a standard, send the clause with the enquiry so it is written into the drawing.
Can you make rolling shutters to a non-standard size?
Yes, and most industrial openings are non-standard. Equipment is built to the measured opening rather than to a catalogue size. We take the clear width, clear height, headroom and side-room on site, then confirm the achievable size on the drawing before manufacture begins.
How long does manufacture and delivery take?
It depends on the product and whether the opening is standard or bespoke, and it moves with material availability and the current order book. Rather than quote a general figure that may not hold, we confirm a delivery date in writing with the quotation.
Do you work with contractors, consultants and PSUs?
Yes. We supply end users directly and also work as a vendor to main contractors, PMCs and design consultants. We are GST registered and manufacture under Make in India, which matters for government and PSU procurement. For tendered work we can provide drawings, product data and the compliance documentation the specification calls for.
What safety devices are included?
For powered equipment, typically safety photocells across the opening, a safety edge where applicable, limit switches at both travel ends, and a manual release for use during a power cut. Vehicle equipment can add loop detectors. The exact schedule is listed on the drawing you approve, so check that rather than assuming a standard set.
How do I get a quote for rolling shutters?
Use the enquiry form on this page and the details reach our team directly, or call and send a WhatsApp message on +91 95492 20707, or email sales@yadaventranceautomation.com. If you already hold drawings or a specification, say so and an engineer will respond rather than a generic reply.
