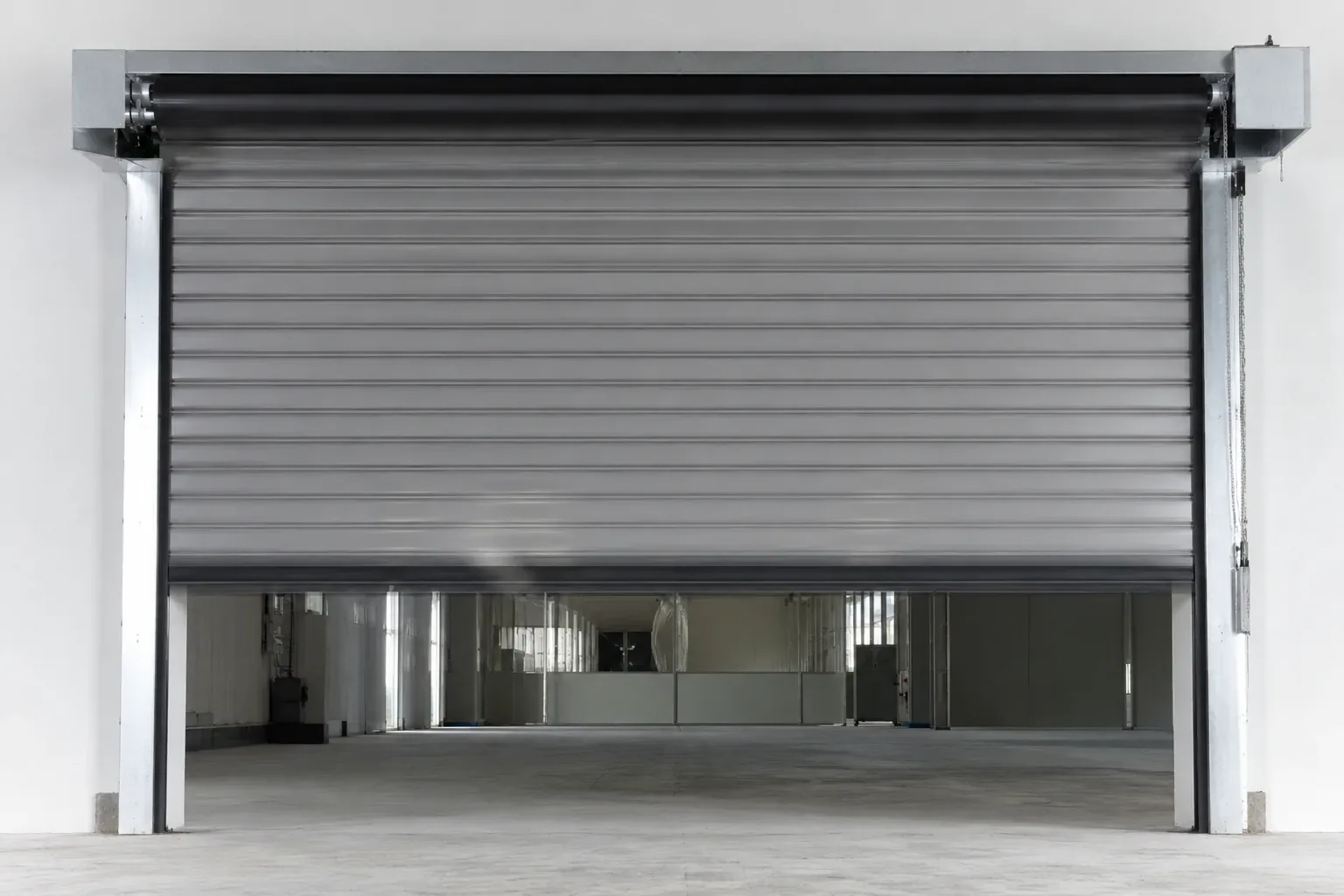

High-Speed Rolling Shutter
A high-speed rolling shutter that opens at up to 1.5–2.0 m/s to cut energy loss and speed forklift traffic at busy bays. Self-repairing curtain options and high cycle ratings suit cleanrooms, cold stores and logistics hubs.
| Speed | up to 2.0 m/s |
| Best for | logistics |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
Built for India's Industrial Demands
From dusty factory floors to high-humidity coastal warehouses, Yadav rolling shutters are specified and manufactured for real-world Indian conditions.
Every Material Grade — One Manufacturer
Mild steel for economy, GLUIM pre-galvanized for humidity resistance, hot-dip galvanized for coastal installations, extruded aluminium for corrosion-free applications, and double-layer aluminium for high-security premises. One vendor, all grades.
Smart Motorization — App, Card & Remote
Motorized rolling shutter models integrate with RF remote (standard), access card readers (Wiegand/RFID), loop detectors for vehicle-activated operation, and an optional GSM module for smartphone control. Timer scheduling for unmanned operation.
18m Width — No Visible Joints
Our CNC roll-forming line produces lath lengths up to 10m. For wider openings, our invisible multi-curtain system uses an intermediate guide post that is recessed into the floor, maintaining a clean facade appearance.
200+ RAL Colours — Exact Brand Match
Our in-house powder coat facility handles custom RAL colours. Submit your brand colour code or Pantone reference and we'll produce a colour match sample within 5 working days before full production begins.
Wind Lock — Standard on All Motorized Models
Retractable polypropylene wind locks engage in the guide channels above the 2m height mark. Prevents curtain flutter and edge damage in wind speeds up to 100 km/h without requiring additional bracing or structural work.
Security-Grade Options — Anti-Jacking Locks
Our high-security MS range includes anti-jacking locks that prevent the curtain being forced upward. Available with double locking bottom bar, cylinder lock integration, and reinforced guide channels for maximum intrusion resistance.
Lath Profile Reference
Visual comparison of our three primary lath materials. All profiles available in 77mm and 92mm depth.
Applications Across Every Sector
The rolling shutter is one of India's most versatile industrial closures. Our ten variants cover every sector from neighbourhood retail to high-security defence establishments.
Aluminium or transparent shutters for shopfronts. Anodized or powder coat finish to match brand identity. Remote operation.
Heavy-duty galvanized MS shutters for large bay openings. 1.6mm lath for maximum strength against forced entry and wind.
Motor-grade GLUIM shutters for petrol pump canopies and service bay closures. Weather sealed, corrosion resistant.
Aluminium shutters for malls, offices, and mixed-use complexes. Perforated lath option for partial visibility and ventilation.
Insulated double-layer aluminium shutters for cold chain facilities. PUF-filled lath option for thermal break at entry points.
Wind-rated 100 km/h aluminium shutters for exposed airport locations. SS304 hardware for coastal corrosion resistance.
Gear-operated or motorized MS shutters for multi-level parking entry/exit. Loop detector or intercom integration.
Anti-jacking MS shutters with double locking bottom bar. Reinforced 3mm guide channels. Alarm integration available.
High-Speed Rolling Shutter — Technical Specifications
Complete engineering data for the rolling shutter range. Specifications listed are for standard Motorized Aluminium — other variants differ in material and drive parameters.
| Parameter | Specification |
|---|---|
| Lath Profile Height | 77mm standard / 92mm heavy-duty |
| Lath Thickness — Steel | 0.8mm (economy) / 1.2mm (standard) / 1.6mm (heavy) |
| Lath Thickness — Aluminium | 1.2mm (standard) / 1.5mm / 2.0mm (heavy) |
| Maximum Single Width | 10,000 mm (single curtain, no intermediate post) |
| Maximum Width (Multi-Curtain) | 18,000 mm (with flush intermediate guide post) |
| Maximum Height | 8,000 mm |
| Drive — Manual | Gear handle (single gear) or push-up (light duty) |
| Drive — Electric | Single-phase 230V or three-phase 415V tubular motor |
| Motor Power Range | 0.25 kW (up to 3m × 3m) to 2.2 kW (large bays) |
| Operating Speed — Motorized | 6–10 m/min (adjustable via limit switches) |
| Daily Cycle Rating | 20–50 cycles per day (standard); 50+ cycles heavy duty |
| Control Options | Push button (standard) / RF remote / Loop detector / Timer / GSM |
| Wind Load — Standard | 55 km/h (MS standard) / 80 km/h (aluminium) / 100 km/h (reinforced) |
| Bottom Beam | Extruded aluminium with EPDM sealing strip; galvanized steel option |
| Side Guide Channels | 1.5mm / 2mm / 3mm rolled steel or aluminium |
| Finish — Steel | Hot-dip galvanized (85 micron) or powder coat (60–80 micron) |
| Finish — Aluminium | Mill finish / anodized (20 micron) / powder coat (custom RAL) |
| Spring Counterbalance | Pre-tensioned torsion spring; Helical spring on manual large bays |
| Drum Barrel | 76mm dia. (light) / 102mm dia. (standard) / 152mm dia. (heavy) |
| Shaft | Solid 25mm / 32mm / 50mm hex steel shaft depending on size |
| IP Rating — Motor | IP44 standard / IP55 optional (outdoor / washdown) |
| Certifications | ISO 9001:2015; BIS Mark (selected MS models); IS 6248 compliant |
| Warranty | 2 years motor, 3 years structure, 1 year surface finish |
What the High-Speed Rolling Shutter is, and who it suits
The High-Speed Rolling Shutter is a type of rolling shutters used across warehouses, factories, cold stores and commercial buildings. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Rolling Shutters range, the sectors we serve, or every product line.
- Warehouse and distribution-centre openings
- Factory and production-floor entrances
- Cold stores and temperature-controlled rooms
- Clean rooms and pharmaceutical areas
- Loading bays and dispatch docks
- Commercial building entrances
- Clear opening width and height (the daylight opening, not the wall opening)
- Lintel / headroom above the opening
- Side-room free each side for guides and motor
- Power available at the opening — 230V single-phase or 415V three-phase, 50 Hz
- Approximate cycles per day
- Any fire-rating, temperature or hygiene requirement
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
High-Speed Rolling Shutter — Engineered & Supported Across India
The High-Speed Rolling Shutter is manufactured and supported entirely within India. As an Indian manufacturer of rolling shutters, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, factories, cold stores and commercial buildings — variable power supply, high ambient temperatures, dust and monsoon humidity — and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities — qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor — Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi — and the Gujarat industrial belt — Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Rolling Shutter Variant Comparison
| Feature | Motorized Aluminium ⭐ Most Popular | Powder Coated M.S. | GLUIM Galvanized | Transparent |
|---|---|---|---|---|
| Material | Extruded 6063-T5 Aluminium | Mild Steel (IS:513) | Pre-galvanized steel | Aluminium + PVC vision |
| Lath Thickness | 1.2mm – 2.0mm | 0.8mm – 1.6mm | 0.8mm – 1.2mm | 1.2mm (fixed) |
| Max Width | 18,000mm (multi) | 18,000mm (multi) | 12,000mm | 6,000mm |
| Corrosion Resistance | Excellent | Moderate (with coat) | Very Good | Excellent |
| Weight (per m²) | ~4.5 kg/m² | ~7–12 kg/m² | ~8–10 kg/m² | ~3.8 kg/m² |
| Best For | Commercial / Coastal / High-cycle | Industrial, godowns, low budget | Humid / coastal industrial | Retail shopfront, visibility |
| Motorization Available | Yes (standard on this variant) | Yes (add-on) | Yes (add-on) | Yes (standard) |
Certified Quality You Can Rely On
9001
Certified quality management system covering all manufacturing and installation processes for our complete rolling shutter range.
Bureau of Indian Standards mark on selected mild steel shutter models. Required for government and PSU procurement under IS 6248.
6248
Indian Standard for metallic rolling shutters and rolling grilles. Compliance ensures structural integrity and material quality standards are met.
India
100% manufactured at our Indian facility. DPIIT registered. Eligible for government procurement preferences and Class-I local supplier designation.
2016
Compliant with National Building Code 2016 provisions for industrial closures. Required for building plan approvals and occupancy certificates.
High-Speed Rolling Shutter — Frequently Asked Questions
Is the High-Speed Rolling Shutter manufactured in India?
Which regions do you install and service in?
What power supply does the High-Speed Rolling Shutter need?
Do you provide installation, spares and AMC?
How do I get a quote for the High-Speed Rolling Shutter?
Is the High-Speed Rolling Shutter certified?
Built Accurately to Your Opening
Manufactured in India — Zero Import Dependency
Our CNC roll-forming lines run all material grades in-house. No delays from import disruptions.
Free Measurement & Site Assessment
We send a technician to measure your openings and check structural suitability — free of charge anywhere in our service areas.
Turnkey Supply & Install — One Invoice
Material, motor, civil work, wiring, and commissioning all covered under a single project invoice. No sub-contractor surprises.
