Automatic & Sensor Doors
Yadav Entrance Automation is an automatic door manufacturer in India building sensor door systems for hospitals, hotels, retail and corporate entrances. Every automatic door pairs a microwave or PIR motion sensor with touchless wave activation and a sliding operator that handles 80–150 kg per leaf — engineered for hands-free, hygienic, high-traffic access with battery backup and break-out fire egress as standard.
| Activation | Microwave / PIR motion sensor + touchless wave switch |
| Leaf Weight | 80 / 100 / 120 / 150 kg per leaf (single & bi-parting) |
| Clear Opening | 900mm – 3,000mm (configured to door type) |
| Power / Backup | 230V single-phase brushless DC; battery backup standard |
Sensor Doors Engineered for Hands-Free Access
Six engineering advantages that make Yadav Entrance Automation sensor doors and automatic doors the preferred choice for hospitals, hotels, malls and corporate entrances across India.
Microwave & PIR Motion Sensing
Every sensor door combines a microwave motion sensor for approach detection with PIR presence sensors that hold the door open while someone stands in the threshold. Dual-technology sensing eliminates false triggers and ghost openings at busy entrances.
Touchless Wave Activation
A touchless automatic door opens on a hand wave — no push plate, no contact, no shared surface. Ideal for hospitals, labs and food-grade areas where hygiene matters, the wave switch mounts either side and works through gloves.
Safety Light-Curtain Protection
An infrared safety light-curtain spans the opening and presence sensors guard the threshold, instantly reversing the leaves if a person or trolley is detected during travel. Soft-start and soft-stop motion eliminates impact and pinch risk.
Battery Backup & Break-Out Egress
On power failure the automatic door drives open or remains operable on battery backup, and break-out leaves swing outward by hand for fire egress. The combination keeps every exit compliant and safe during emergencies.
Toughened Glass Automatic Doors
Automatic glass doors use 10–12mm toughened glass leaves in slimline aluminium or frameless patch-fitting, delivering a clean, premium entrance. Clear opening widths from 900mm single to 3,000mm bi-parting suit any façade.
Pan-India Install & AMC
Our service network installs and maintains automatic doors nationwide, with Annual Maintenance Contracts carrying a 4-hour emergency response SLA. One vendor for manufacture, installation, spares and service — no middlemen.
Types of Automatic & Sensor Doors We Manufacture
Five automatic door configurations covering every hands-free access application. Each is built to order — tell us your opening width, leaf weight, activation method and traffic profile and we engineer to match.
Most Popular
Sensor Door
The flagship automatic sliding sensor door for commercial and corporate entrances. A microwave motion sensor opens the leaves on approach and PIR presence sensors hold them clear — hands-free, high-traffic access on a brushless DC operator with battery backup.
View details
High Traffic
Motion Sensor Door
A motion sensor door tuned for footfall — dual-technology sensing rejects passing traffic and ghost triggers while opening reliably for genuine approach. Adjustable detection field and hold-open timing make it ideal for malls, airports and showrooms.
View details
Hygienic
Touchless Automatic Door
A touchless automatic door opens on a contact-free hand wave, eliminating shared-surface transmission at the entrance. The wave switch mounts either side and operates through gloves — the preferred choice for clinics, labs, kitchens and clean rooms.
View details
Premium Entrance
Glass Automatic Door
An automatic glass door with 10–12mm toughened leaves in slimline aluminium or frameless patch fittings for a clean, premium look. Single-leaf or bi-parting on a concealed operator — the standard entrance for hotels, banks and retail flagships.
View details
Healthcare

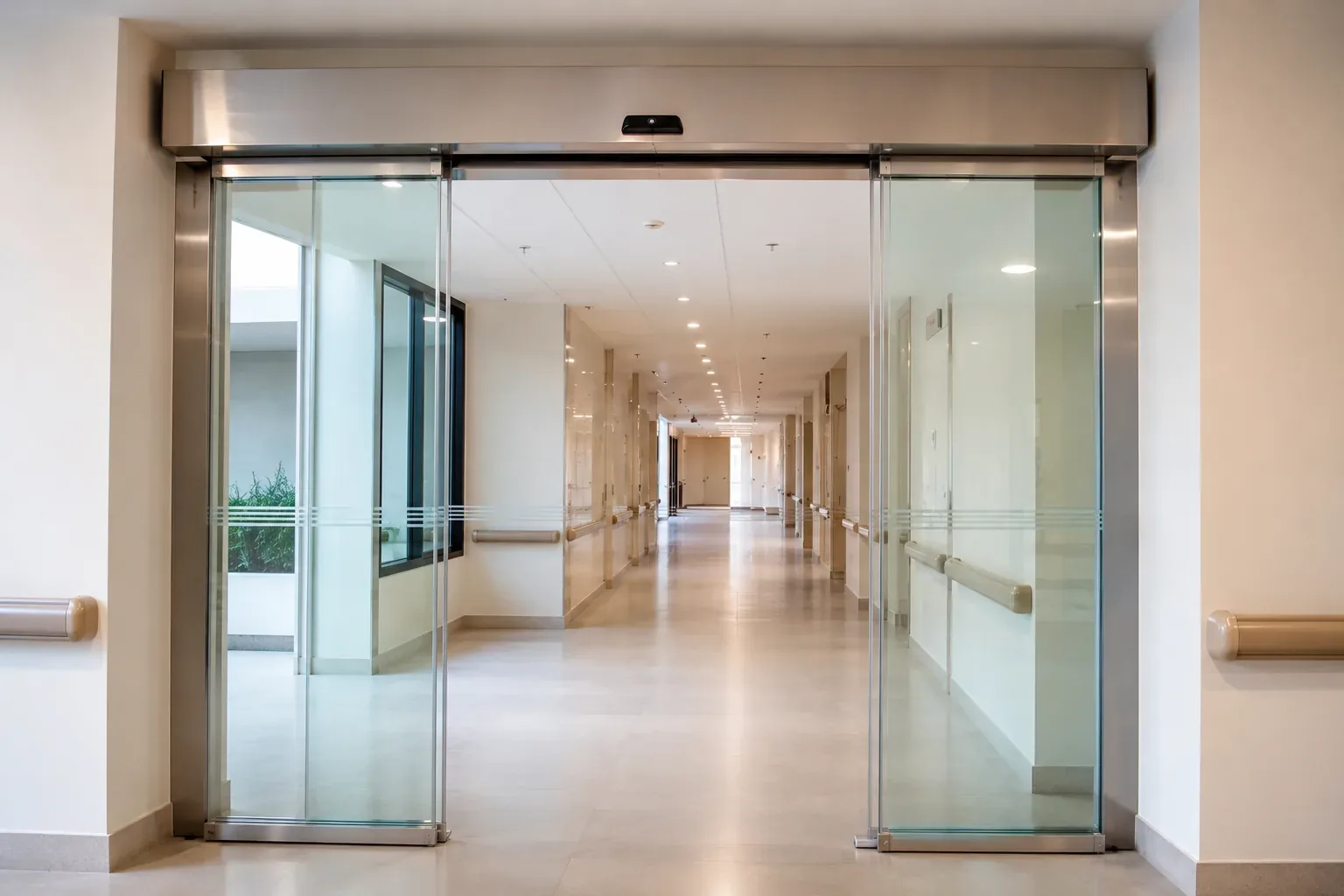

Hospital Automatic Door
A hermetic hospital automatic door for operating theatres, ICUs and clean rooms — stainless-steel frames, sealed perimeter gaskets and an antibacterial finish maintain pressure differential and contamination control. Touchless activation keeps surgical areas hands-free.
View detailsWhere Sensor & Automatic Doors Are Used
Yadav Entrance Automation sensor doors are deployed across India's healthcare, hospitality, retail and corporate sectors — each with specific hygiene, traffic and fire-egress requirements our engineers address at specification stage.
Hermetic hospital automatic doors for theatres, ICUs and clean rooms with touchless, hands-free access for infection control
Premium automatic glass doors at lobbies and entrances delivering a welcoming, climate-sealed arrival experience
High-traffic motion sensor doors that handle continuous footfall while conserving conditioned air at the storefront
Sensor doors integrated with access control for secure, hands-free entry at reception and lift lobbies
Bi-parting automatic doors with wide clear openings for baggage trolleys and crowd flow at terminals and stations
Touchless automatic doors with sealed gaskets for clean rooms and GMP areas requiring pressure and contamination control
Frameless glass automatic doors combining a premium look with break-out fire egress and access integration
Touchless wave-activated doors between front-of-house and kitchen for hands-free, hygienic passage carrying trays
Full Automatic & Sensor Door Specifications
Complete engineering data for the Yadav Entrance Automation automatic door range. All systems are built to order — opening width, leaf weight, activation and finish are configured to your application.
| Parameter | Specification |
|---|---|
| Door Configuration | Single-slide or bi-parting (telescopic on request) |
| Activation | Microwave + PIR motion sensor; touchless wave switch; access control optional |
| Leaf Weight | 80 kg / 100 kg / 120 kg / 150 kg per leaf |
| Clear Opening Width | 900mm – 3,000mm (single 900–1,400mm; bi-parting up to 3,000mm) |
| Leaf Material | 10–12mm toughened glass; aluminium framed; SS hermetic (hospital) |
| Operator | Brushless DC motor with toothed-belt drive; soft start / soft stop |
| Opening Speed | Adjustable up to 0.6 m/s; closing speed up to 0.5 m/s |
| Power Supply | 230V single-phase, 50 Hz; ~150 W typical draw |
| Battery Backup | Standard — drives open or holds operable on mains failure |
| Fire Egress | Break-out leaves swing outward by hand for emergency exit |
| Safety Devices | Infrared safety light-curtain, threshold presence sensors, anti-trap reversal |
| Hospital / Hermetic Option | SS frame, sealed perimeter gaskets, antibacterial powder-coat finish |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 2 years operator & sensors, 5 years frame structure |
Automatic & Sensor Door Variant Comparison
| Door Type | Sensor / Activation | Sensor Door ⭐ Most Popular | Leaf Weight / Width | Best Use | Fail-Safe |
|---|---|---|---|---|---|
| Sensor Door | Microwave + PIR | Sliding operator | 80–120 kg / up to 2,400mm | Commercial entrance | Battery + break-out |
| Motion Sensor Door | Dual-technology | Bi-parting | 100–150 kg / up to 3,000mm | Malls, airports | Battery + break-out |
| Touchless Automatic Door | Wave switch | Single / bi-parting | 80–120 kg / up to 2,400mm | Clinics, kitchens | Battery backup |
| Glass Automatic Door | Microwave + PIR | Frameless glass | 100–150 kg / up to 3,000mm | Hotels, banks, retail | Battery + break-out |
| Hospital Automatic Door | Touchless wave | Hermetic SS frame | 120–150 kg / up to 2,400mm | OT, ICU, clean room | Battery + manual override |
Certified to International Standards
Our automatic and sensor door range carries the certifications required by India's leading hospitals, hotel groups, retail chains and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all automatic and sensor doors.
European conformity per EU Machinery Directive 2006/42/EC — required by multinational clients and confirming safety compliance.
16005
Power-operated pedestrian door safety standard — light-curtain, presence sensing and force limits for safe automatic door use.
2016
Break-out fire egress and installation methodology compliant with the National Building Code of India 2016 for safe exits.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Sensor Door Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every automatic door manufactured under ISO 9001 quality control — no rebadged imports, no middlemen.
Free Site Survey & Drawing
Our engineers survey your opening and supply a full installation drawing for your contractor — at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all sensor doors and entrance automation with a 4-hour emergency response SLA.
Choosing automatic doors: what actually decides the specification
A sensor door is a sensor-operated door that opens without being touched. The right one is decided by the opening and how it is used, not by the catalogue. These are the things worth settling before anyone quotes.
What to measure
- Clear opening width and height — the daylight opening the vehicle or person passes through, not the hole in the wall.
- Headroom above the opening — decides which products are possible at all.
- Side-room, both sides — guides, tracks and motors live here, and it is rarely equal on both sides.
- Power at the position — 230V single-phase or 415V three-phase, 50 Hz.
- Cycles per shift — the most under-specified figure on a typical enquiry.
- Environment — temperature, dust, washdown, coastal air or a hygiene requirement.
The full automatic doors range
- Sensor Door — The flagship automatic sliding sensor door for commercial and corporate entrances.
- Motion Sensor Door — A motion sensor door tuned for footfall — dual-technology sensing rejects passing traffic and ghost triggers while opening reliably for genuine approach.
- Touchless Automatic Door — A touchless automatic door opens on a contact-free hand wave, eliminating shared-surface transmission at the entrance.
- Glass Automatic Door — An automatic glass door with 10–12mm toughened leaves in slimline aluminium or frameless patch fittings for a clean, premium look.
- Hospital Automatic Door — A hermetic hospital automatic door for operating theatres, ICUs and clean rooms — stainless-steel frames, sealed perimeter gaskets and an antibacterial finish maintain pressure differential and contamination control.
Where automatic doors are typically installed
We build automatic doors for office and hospital entrances, pharmaceutical areas and clean rooms.
Sectors we supply
- Warehousing and logistics — distribution centres, 3PL facilities and dispatch docks.
- Cold chain — cold stores, freezer rooms and temperature-controlled dispatch.
- Automotive and engineering — component plants, press shops and assembly lines.
- Pharmaceutical and clean manufacturing — controlled and hygiene-critical areas.
- Infrastructure and construction — plant perimeters, site structures and civil scopes.
- Commercial and institutional — offices, campuses, hospitals and parking facilities.
What drives the cost
We quote per project rather than publishing prices. The figure moves with the leaf weight and glazing, the sensor and controller, and any hermetic or clean-room requirement. Send the measurements above and an engineer returns a drawing and a written quotation. Talk to an engineer →
Standards, materials and what we certify
- ISO 9001 — our quality management system is certified to it.
- CE marking on applicable products — a manufacturer's declaration of conformity, not a quality grade.
- IS 2062 structural steel for fabrication, gates and structures.
- IS 6248 for metal rolling shutters.
- EN 1634 as the reference for fire-resistance testing.
- Make in India and GST registered — relevant to government and PSU procurement.
- 230V single-phase / 415V three-phase, 50 Hz — standard Indian industrial mains.
Reference sources: European Commission, CE marking · Bureau of Indian Standards
From enquiry to handover
- Enquiry. Opening sizes, site location and application. An engineer picks it up.
- Site survey. We measure the clear opening, headroom, side-room and power position.
- Drawing and quotation. Equipment, safety schedule, electrical requirement and a written delivery date.
- Manufacture at Neemrana. Built to the approved drawing and the measured opening.
- Installation and commissioning. Fitted and tested by our own team through full travel with safety devices live.
- Handover, spares and AMC. Operating instructions on site, then service through the nearest team.
Explore the full product range, the sectors we serve, our delivered installations, or the areas we cover.
Automatic Doors — frequently asked questions
Who manufactures automatic doors in India?
Yadav Entrance Automation Pvt. Ltd. manufactures automatic doors in India, at our plant at Neemrana, Rajasthan on the Delhi-Jaipur NH-48 corridor. We have been building entrance automation equipment since 2011, with more than 500 installations across over 50 cities. Equipment is made to the measured opening rather than to a catalogue size, then installed and commissioned by our own engineers.
What is a sensor door?
A sensor door is a sensor-operated door that opens without being touched. It is specified against the opening it serves and the way that opening is used, so two openings of the same width can need different equipment. We build automatic doors for office and hospital entrances, pharmaceutical areas and clean rooms.
What does a sensor door cost?
We quote per project rather than publishing a price, because the figure moves with the leaf weight and glazing, the sensor and controller, and any hermetic or clean-room requirement. Send the opening dimensions, the site location and how the opening is used, and an engineer will come back with a drawing and a written quotation. That is faster than a list price that would need revising once the site is measured.
Do you supply automatic doors near me?
We install and service across North and West India, with the plant at Neemrana and teams in Delhi NCR and Gujarat. Installations to date cover more than 50 cities, concentrated in the Delhi-Jaipur corridor, Haryana, Rajasthan and Gujarat. Tell us the site location with your enquiry and we will confirm coverage before quoting.
Can automatic doors be motorised or automated?
Yes, where the product supports it. Motorised operation is specified against the weight being moved and the number of cycles per day, not simply added on. The drive, the control panel and the safety devices are listed on the technical drawing you approve before manufacture, so nothing about the automation is a surprise on site.
What power supply is needed?
Standard Indian industrial mains: 230V single-phase or 415V three-phase at 50 Hz. Which one applies depends on the product, the size of the opening and the duty cycle. The requirement is confirmed on the approved drawing so your electrical contractor can position the supply and isolator before delivery.
What measurements do you need to quote for automatic doors?
Clear opening width and height first — the daylight opening, not the wall opening. Then the headroom above the opening and the free side-room each side. Add the power available at the position, how many openings, and roughly how often each is used in a shift. Those figures let an engineer rule out the wrong products before visiting.
Do you handle installation, or only supply?
We manufacture, install and commission with our own team, and we do not sub-contract installation of our own equipment. How well a unit is fitted to its opening decides how long it lasts, so it is not work we hand off. Handover includes operating instructions on site.
Do you provide service, spares and AMC?
Yes. We supply genuine spares and offer Annual Maintenance Contracts for the equipment we manufacture. On high-cycle equipment maintenance matters more than most buyers expect, because wear tracks cycles rather than calendar age. Tell us the site and the equipment and we will route it to the nearest service team.
Which standards and certifications apply?
Our manufacturing is certified to ISO 9001 and applicable products are CE marked. Structural steelwork commonly references IS 2062 and rolling shutters IS 6248, both published by the Bureau of Indian Standards; fire-resistance testing is commonly referenced to EN 1634. If your specification names a standard, send the clause with the enquiry so it is written into the drawing.
Can you make automatic doors to a non-standard size?
Yes, and most industrial openings are non-standard. Equipment is built to the measured opening rather than to a catalogue size. We take the clear width, clear height, headroom and side-room on site, then confirm the achievable size on the drawing before manufacture begins.
How long does manufacture and delivery take?
It depends on the product and whether the opening is standard or bespoke, and it moves with material availability and the current order book. Rather than quote a general figure that may not hold, we confirm a delivery date in writing with the quotation.
Do you work with contractors, consultants and PSUs?
Yes. We supply end users directly and also work as a vendor to main contractors, PMCs and design consultants. We are GST registered and manufacture under Make in India, which matters for government and PSU procurement. For tendered work we can provide drawings, product data and the compliance documentation the specification calls for.
What safety devices are included?
For powered equipment, typically safety photocells across the opening, a safety edge where applicable, limit switches at both travel ends, and a manual release for use during a power cut. Vehicle equipment can add loop detectors. The exact schedule is listed on the drawing you approve, so check that rather than assuming a standard set.
How do I get a quote for automatic doors?
Use the enquiry form on this page and the details reach our team directly, or call and send a WhatsApp message on +91 95492 20707, or email sales@yadaventranceautomation.com. If you already hold drawings or a specification, say so and an engineer will respond rather than a generic reply.
