Glazed Sectional Door

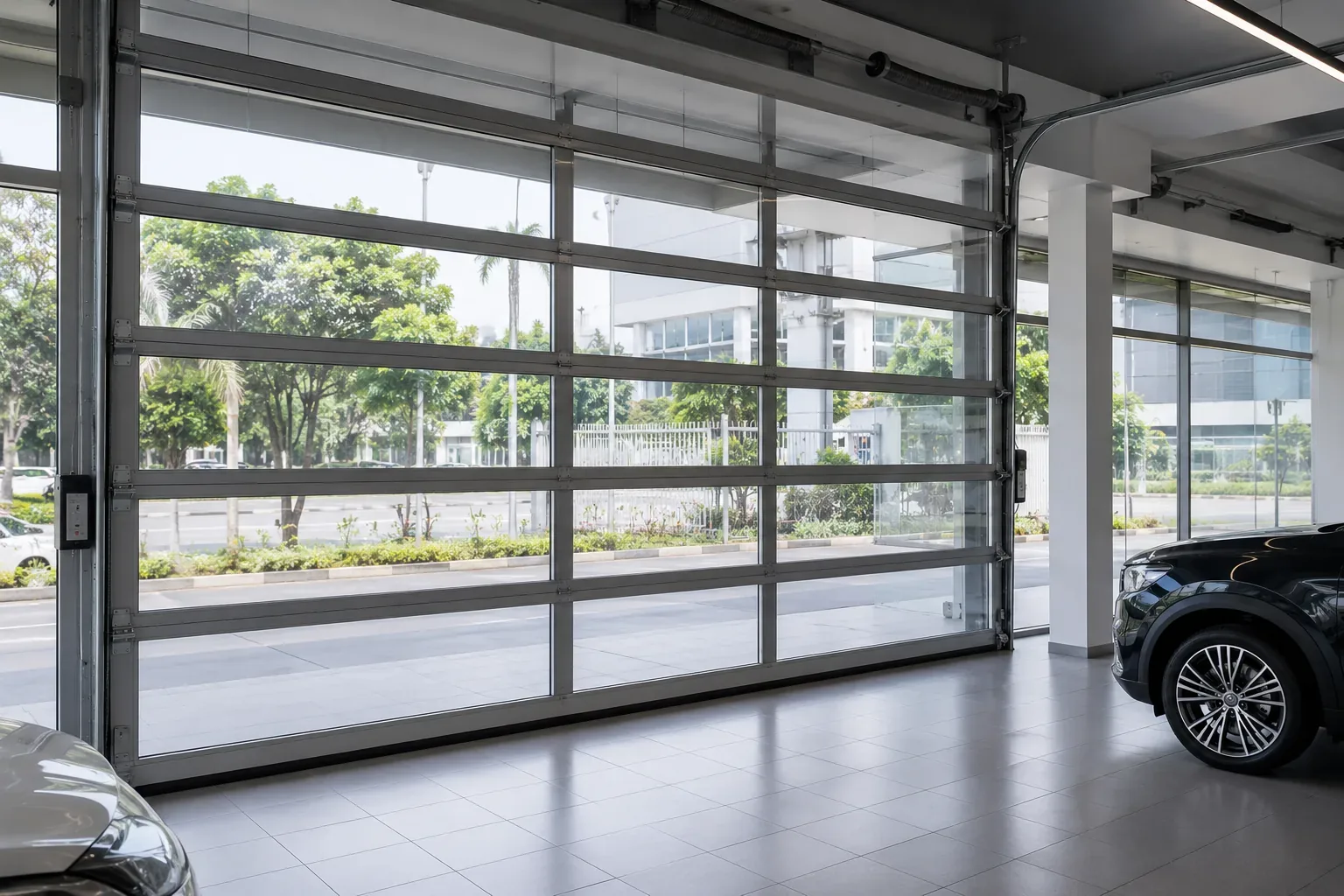

A glazed sectional door with full-vision aluminium panels and double-glazed inserts that flood the bay with daylight while keeping it secure. Ideal for showrooms, service workshops and front-of-house overhead door openings needing visibility and kerb appeal.
| Glazing | double-glazed |
| Frame | aluminium |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
Industrial Overhead Doors Built for Indian Industry
Six engineering advantages that make Yadav Entrance Automation industrial sectional doors and overhead doors the preferred choice for warehouses, factories and logistics hubs across India.
40mm Insulated Sectional Door Panels
Our insulated sectional door uses 40mm double-skin panels with a CFC-free PU-foam core, delivering a low U-value that holds temperature in cold stores and air-conditioned plants. Galvanized and powder-coated skins resist corrosion across India's humid and coastal sites.
Fail-Safe Safety as Standard
Every overhead door ships with safety photocells that reverse on obstruction, an anti-drop device that locks the panel on spring or cable failure, and finger-protect panel joints that eliminate pinch points. Closing edge sensors and manual chain-hoist override are available.
Spring-Balanced, Smooth Operation
Torsion-spring counterbalancing makes even a 7m-high commercial overhead door easy to operate by chain-hoist, and effortless under a motorized operator. Sealed roller carriages and galvanized tracks deliver quiet, drift-free travel cycle after cycle.
Vertical, Standard & High-Lift Tracks
Choose standard-lift for typical headroom, high-lift to stack the door clear of overhead cranes, or vertical-lift where full ceiling height is available. We design the track geometry around your lintel, headroom and side-room — not a fixed catalogue layout.
Widths to 8m, Heights to 7m
From compact garage door openings to 8m × 7m industrial bays, every sectional overhead door is fabricated to your clear opening. Add a wicket door for personnel access, glazed vision windows, or ventilation grilles — engineered to your facade.
Pan-India Install & AMC
Our service network installs and maintains sectional and overhead doors nationwide, with Annual Maintenance Contracts carrying a 4-hour emergency response SLA. One vendor for manufacture, installation, spares and service — no middlemen.
Where Sectional & Overhead Doors Are Used
Yadav Entrance Automation sectional and overhead doors are deployed across India's warehousing, manufacturing, cold-chain and automotive sectors — each with specific size, insulation and duty-cycle requirements our engineers address at specification stage.

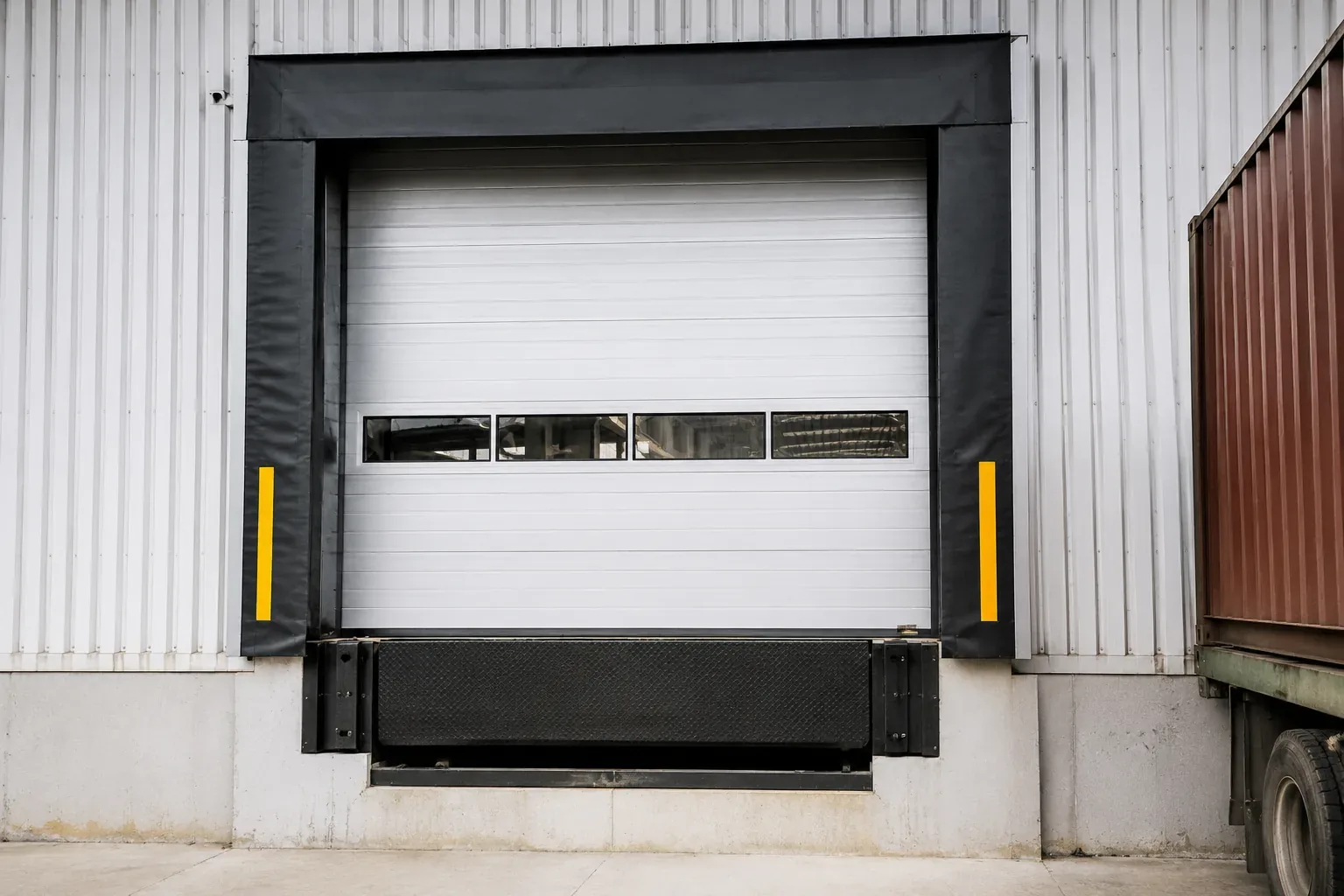

Dock sectional doors sealing loading bays between dispatches, paired with dock levelers for secure, weather-tight truck access

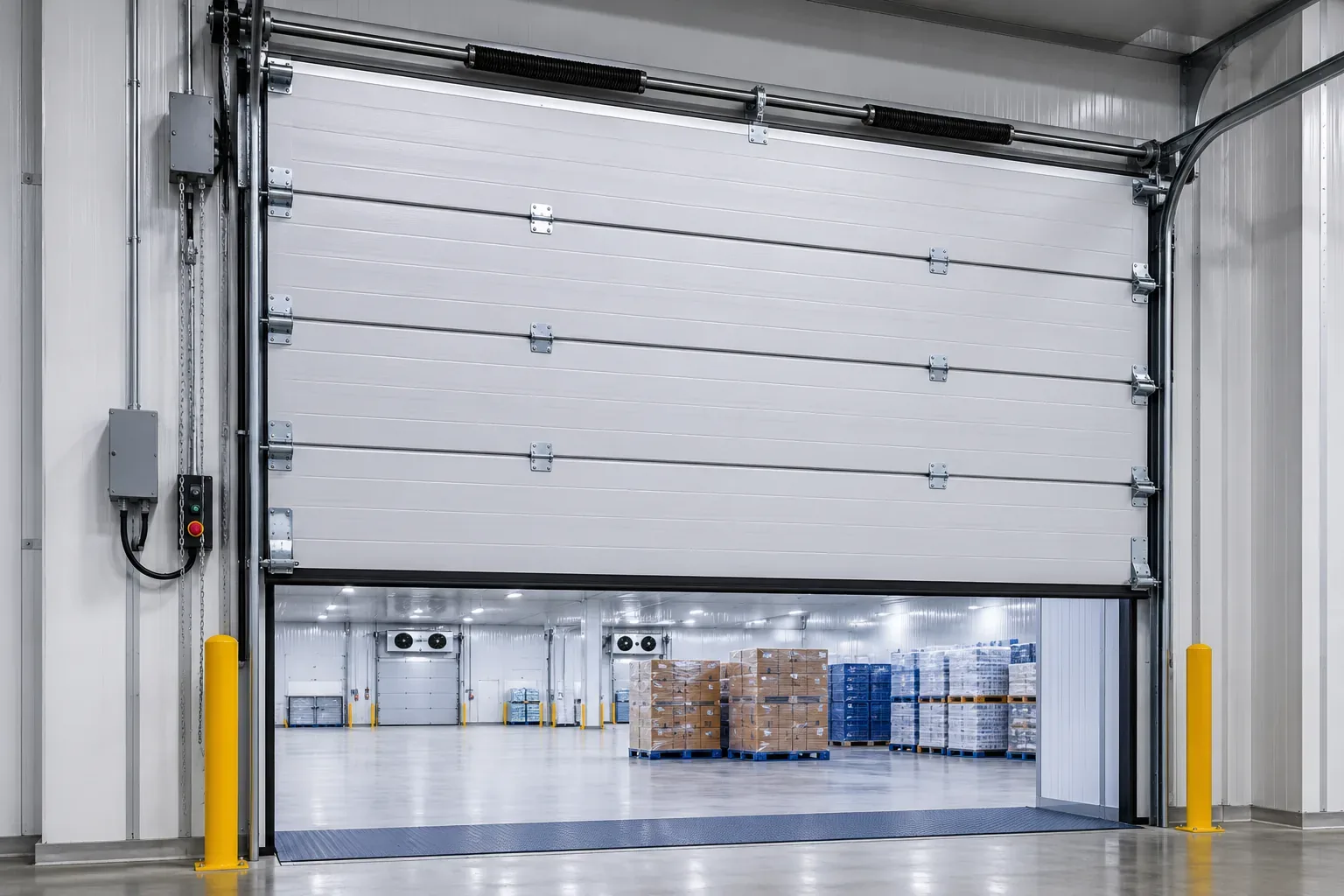

Insulated sectional doors with 40mm PU panels holding temperature at cold stores and refrigerated dispatch areas

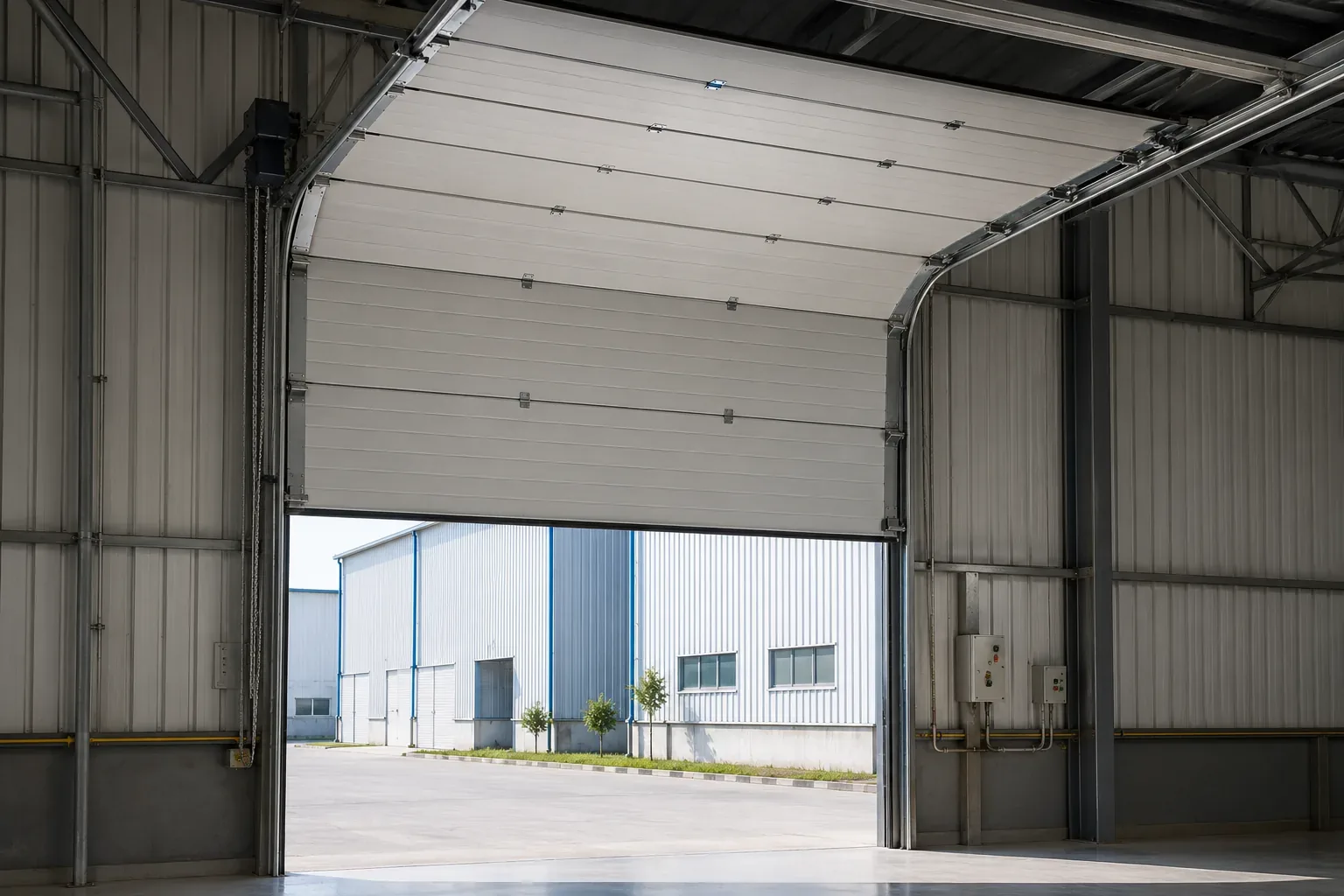

Industrial sectional doors on factory bays freeing floor and headroom while securing the plant against weather and intrusion
Commercial overhead doors and glazed sectional doors for service workshops, paint booths and vehicle wash bays
Commercial overhead doors at backs-of-house and stockrooms, secure motorized upgrades to manual garage doors
Smooth, washdown-capable insulated sectional doors for GMP areas needing clean, sealed and contamination-free openings
Glazed sectional doors flooding showrooms and front-of-house bays with daylight while keeping the opening secure
High-lift overhead doors clearing tall vehicles and overhead cranes at bus depots, fleet garages and MRO hangars
Glazed Sectional Door — Technical Specifications
Complete engineering data for the Yadav Entrance Automation sectional overhead door range. All models are built to order — clear width, height, insulation and track geometry are configured to your opening.
| Parameter | Specification |
|---|---|
| Max Clear Width | Up to 8,000mm (8m) — custom on request |
| Max Clear Height | Up to 7,000mm (7m) — custom on request |
| Panel Construction | 40mm double-skin sandwich panel, CFC-free PU foam core |
| Insulation (U-value) | Approx. 0.5–1.0 W/m²K (40mm insulated panel) |
| Track Type | Standard-lift / high-lift / vertical-lift (per headroom) |
| Operating Mechanism | Spring-balanced torsion springs; chain-hoist or motorized operator |
| Operator | 0.55–1.5 kW tubular / side-mount motor; 230V 1-ph or 415V 3-ph |
| Panel Finish | Hot-dip galvanized steel skin + polyester powder coat (RAL on request) |
| Sealing | EPDM perimeter, bottom and inter-panel gaskets |
| Vision & Access | Optional vision windows, ventilation grilles, integral wicket door |
| Safety Devices | Photocells, anti-drop device, finger-protect panels, closing-edge sensor |
| Control | Push-button + e-stop; remote, key-switch or sensor activation optional |
| Certifications | ISO 9001:2015, CE Marked (EU Construction Products / Machinery) |
| Warranty | 2 years operator & hardware, 5 years panels & frame |
What the Glazed Sectional Door is, and who it suits
The Glazed Sectional Door is a type of sectional & overhead doors used across warehouses, factories, cold stores and commercial buildings. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Sectional & Overhead Doors range, the sectors we serve, or every product line.
- Warehouse and distribution-centre openings
- Factory and production-floor entrances
- Cold stores and temperature-controlled rooms
- Clean rooms and pharmaceutical areas
- Loading bays and dispatch docks
- Commercial building entrances
- Clear opening width and height (the daylight opening, not the wall opening)
- Lintel / headroom above the opening
- Side-room free each side for guides and motor
- Power available at the opening — 230V single-phase or 415V three-phase, 50 Hz
- Approximate cycles per day
- Any fire-rating, temperature or hygiene requirement
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Glazed Sectional Door — Engineered & Supported Across India
The Glazed Sectional Door is manufactured and supported entirely within India. As an Indian manufacturer of sectional & overhead doors, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, factories, cold stores and commercial buildings — variable power supply, high ambient temperatures, dust and monsoon humidity — and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities — qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor — Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi — and the Gujarat industrial belt — Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Sectional & Overhead Door Variant Comparison
| Door Type | Panel / Insulation | Insulated Sectional ⭐ Most Popular | Max Size | Best Use |
|---|---|---|---|---|
| Commercial Overhead Door | 40mm single-skin / steel | Motorized | 4m × 4m | Retail, workshops, garage door upgrade |
| Industrial Sectional Door | 40mm double-skin | Standard / high-lift | 6m × 6m | Factory & warehouse bays |
| Insulated Sectional Door | 40mm PU foam, low U-value | Thermal-sealed | 7m × 6m | Cold stores, AC plants |
| Glazed Sectional Door | Aluminium, double-glazed | Full-vision | 5m × 5m | Showrooms, service bays |
| Dock Sectional Door (Heavy-Duty) | 40mm double-skin + seals | Leveler-integrated | 8m × 7m | Loading docks, dispatch |
Certified to International Standards
Our sectional and overhead door range carries the certifications required by India's largest 3PL operators, multinational manufacturers and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all sectional and overhead doors.
European conformity for industrial doors — required by multinational clients and confirming safety and performance compliance.
2062
Structural steel to Indian Standard IS 2062 Grade B for tracks, frames and hardware — certified load and fatigue performance.
2016
Installation methodology compliant with the National Building Code of India 2016 for industrial occupancy and safety clearance.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Glazed Sectional Door — Frequently Asked Questions
Is the Glazed Sectional Door manufactured in India?
Which regions do you install and service in?
What power supply does the Glazed Sectional Door need?
Do you provide installation, spares and AMC?
How do I get a quote for the Glazed Sectional Door?
Is the Glazed Sectional Door certified?
Sectional Overhead Door Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every sectional and overhead door manufactured under ISO 9001 quality control — no imported products, no middlemen.
Free Site Survey & Opening Drawing
Our engineers measure your opening, lintel and headroom and supply a full installation drawing for your contractor — at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all sectional doors, overhead doors and dock equipment with a 4-hour emergency response SLA.
