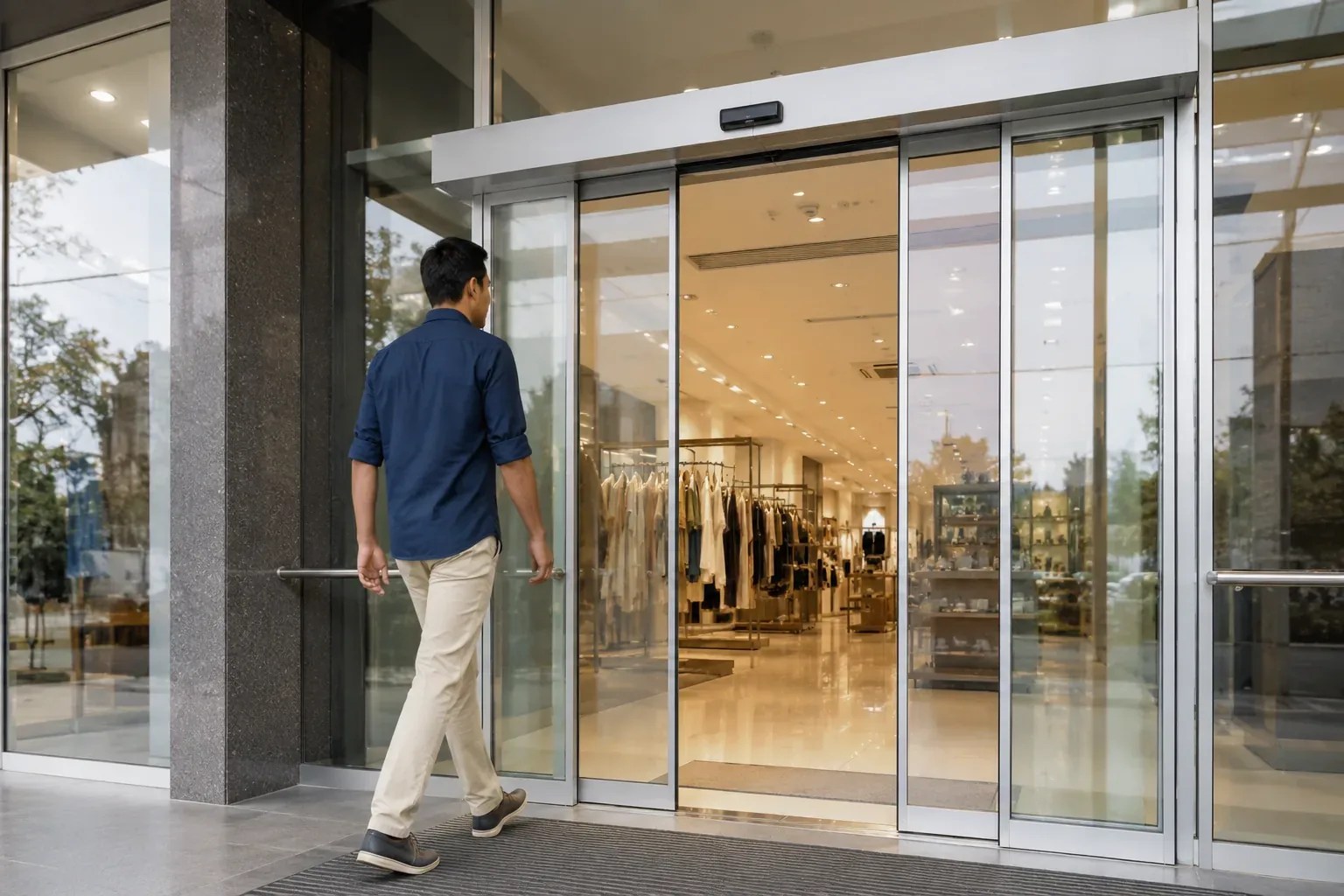

Sensor Sliding Door
A sensor sliding door tuned for fully hands-free, touchless operation in high-hygiene and high-traffic settings. Overhead microwave sensors detect approach and a threshold light-curtain guards the opening, with adjustable hold-open time, opening width and speed for energy-efficient, contactless entry.
| Sensor | microwave + curtain |
| Mode | touchless |
| Brand | Yadav Entrance Automation Pvt. Ltd. |
| Manufacturing | Made in India · ISO 9001 · CE |
Automatic Sliding Door Systems Built for Indian Buildings
Six engineering advantages that make Yadav Entrance Automation the preferred automatic sliding door manufacturer for showrooms, hospitals, hotels and clean facilities across India.
Brushless DC Operators, 80–200 kg/Leaf
Every automatic sliding door runs on a quiet brushless DC operator rated 80 to 200 kg per leaf. Closed-loop control delivers smooth acceleration, soft stop and consistent speed cycle after cycle — engineered for high-traffic entrances that open thousands of times a day.
Microwave + Safety Light-Curtain Sensors
Overhead microwave sensors detect approach and open the door hands-free, while a safety light-curtain across the threshold reverses motion the instant a person or trolley is in the path. Obstruction detection and auto-reverse protect users at every opening.
Battery Backup & Break-Out Anti-Panic
Integrated battery backup keeps the automatic sliding door operating during a power cut, and break-out anti-panic leaves swing outward under push for instant manual egress. The combination meets fire and life-safety requirements for public buildings.
Toughened & Laminated Glass Leaves
Automatic glass sliding door leaves use 10–12mm toughened or laminated glass with slim aluminium frames or frameless patch fittings. Clear, full-height glazing maximises sightlines and daylight while keeping the threshold weather-sealed and draught-free.
Telescopic for Narrow Openings
Where the side pocket is too short for a standard slide, a telescopic sliding door stacks two leaves per side (2+2) to deliver a wider clear opening from a compact reveal. Single and bi-parting layouts cover everything from cabins to airport gates.
Pan-India Install & AMC
Our service network installs and maintains automatic sliding doors nationwide, with Annual Maintenance Contracts carrying a 4-hour emergency response SLA. One vendor for manufacture, installation, sensors, spares and service — no middlemen.
Where Automatic Sliding Doors Are Used
Yadav Entrance Automation automatic sliding doors are deployed across India's healthcare, retail, hospitality and transport sectors — each with specific hygiene, traffic and life-safety requirements our engineers address at specification stage.
Hermetic sliding doors for operating theatres and ICUs, plus hands-free glass entrances for lobbies and corridors
Automatic glass sliding doors at showroom and mall fronts that welcome footfall while sealing in conditioned air
Wide bi-parting glass entrances with battery backup for premium, draught-free arrival experiences
Telescopic sliding doors for narrow gate reveals and high-throughput terminal and metro entrances
Sensor sliding doors with access control, night-lock and break-out anti-panic leaves for secure lobbies
SS-framed hermetic doors with sealed gaskets and antibacterial coating for GMP pressure-controlled zones
IP-rated industrial sliding doors for dust, washdown and continuous-duty traffic between process areas
Touchless sensor doors for hygiene-critical kitchens and insulated sliding doors at chilled thresholds
Sensor Sliding Door — Technical Specifications
Complete engineering data for the Yadav Entrance Automation automatic sliding door range. All systems are built to order — leaf weight, configuration, clear width and sensors are configured to your opening and application.
| Parameter | Specification |
|---|---|
| Leaf Weight (per leaf) | 80 kg / 120 kg / 160 kg / 200 kg (operator selected to suit) |
| Configuration | Single slide, bi-parting (centre-opening) & telescopic (2+2) per side |
| Clear Opening Width | 900mm – 3,000mm+ (depends on configuration & leaf count) |
| Operator | Brushless DC motor with encoder; 230V single-phase; soft start / stop |
| Leaf / Glazing | 10–12mm toughened or laminated glass; solid / insulated panels (industrial) |
| Activation Sensors | Overhead microwave motion sensor; access control / push / foot switch options |
| Safety Sensors | Threshold safety light-curtain with auto-reverse & obstruction detection |
| Opening Speed | Adjustable approx. 0.3–0.6 m/s; hold-open & closing speed configurable |
| Backup & Egress | Battery backup option; break-out anti-panic leaves for fire egress |
| Hermetic Variant | SS frame, sealed perimeter gasket, flush sill, antibacterial coating |
| Industrial Variant | IP-rated operator for dust / washdown environments; insulated leaf option |
| Control | Programmable controller — auto / manual / open-hold / night-lock modes |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 2 years operator & controller, 5 years track & carriage |
What the Sensor Sliding Door is, and who it suits
The Sensor Sliding Door is a type of automatic sliding door used across warehouses, factories, cold stores and commercial buildings. It is built to order at our Neemrana plant, installed and commissioned by our own engineers, and supported afterwards with spares and maintenance. See the full Automatic Sliding Door range, the sectors we serve, or every product line.
- Warehouse and distribution-centre openings
- Factory and production-floor entrances
- Cold stores and temperature-controlled rooms
- Clean rooms and pharmaceutical areas
- Loading bays and dispatch docks
- Commercial building entrances
- Clear opening width and height (the daylight opening, not the wall opening)
- Lintel / headroom above the opening
- Side-room free each side for guides and motor
- Power available at the opening — 230V single-phase or 415V three-phase, 50 Hz
- Approximate cycles per day
- Any fire-rating, temperature or hygiene requirement
Send these with your enquiry and an engineer replies with a drawing and a written delivery date, rather than a generic response. Talk to an engineer →
Reference: manufacturing certified to ISO 9001, applicable products CE marked (European Commission), built to Indian Standards published by the Bureau of Indian Standards.
Sensor Sliding Door — Engineered & Supported Across India
The Sensor Sliding Door is manufactured and supported entirely within India. As an Indian manufacturer of automatic sliding door, Yadav Entrance Automation Pvt. Ltd. engineers each unit for the realities of Indian warehouses, factories, cold stores and commercial buildings — variable power supply, high ambient temperatures, dust and monsoon humidity — and backs it with in-house manufacturing, pan-India installation and after-sales maintenance.
- Made in IndiaManufactured in-house at our Indian facilities — qualifies as a Make-in-India product for government and PSU procurement.
- Standard Indian MainsPowered models run on 230V single-phase or 415V three-phase at 50 Hz; manual / non-powered options where applicable.
- Established Since 2011Part of a track record of 500+ installations across 50+ Indian cities.
- Pan-India Install & AMCInstallation, genuine spare parts and Annual Maintenance Contracts (AMC) available nationwide.
- GST-Compliant SupplyGST invoicing for Indian businesses, with documentation suited to enterprise and PSU procurement.
- Built for Indian ConditionsSpecified for the heat, dust and monsoon humidity common on Indian industrial sites.
Strong on-ground presence in the NCR & Haryana industrial corridor — Gurugram, Manesar, Bhiwadi, Neemrana, Bawal, Faridabad, Noida, Jhajjar, Bahadurgarh and Delhi — and the Gujarat industrial belt — Ahmedabad, Sanand, Vithlapur and Mandal. Installation and service available across India. See all areas we serve →
Automatic Sliding Door Variant Comparison
| Door Type | Configuration | Glass Sliding ⭐ Most Popular | Max Clear Width | Sensor / Safety | Best For |
|---|---|---|---|---|---|
| Automatic Glass Sliding Door | Single / bi-parting | Toughened glass | Up to 3,000mm | Microwave + light-curtain | Showrooms, lobbies |
| Sensor Sliding Door | Single / bi-parting | Touchless | Up to 2,400mm | Microwave + light-curtain | Banks, offices |
| Telescopic Sliding Door | Telescopic (2+2) | Glass / solid | Up to 3,500mm | Microwave + light-curtain | Narrow reveals, gates |
| Industrial Sliding Door | Single / bi-parting | Insulated panel | Up to 4,000mm | IP-rated + traffic sensor | Factories, process areas |
| Hermetic Sliding Door | Single, flush sill | SS, sealed gasket | Up to 1,800mm | Hands-free + light-curtain | OT, ICU, clean rooms |
Certified to International Standards
Our automatic sliding door range carries the certifications required by India's leading hospitals, retail chains, hospitality groups and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all automatic sliding door systems.
European conformity per EU Machinery Directive 2006/42/EC — confirming operator and safety-sensor compliance for public buildings.
16005
Power-operated pedestrian door safety standard — break-out anti-panic, light-curtain and force limits for safe public use.
2016
Installation methodology compliant with the National Building Code of India 2016 for fire egress and means of escape.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Sensor Sliding Door — Frequently Asked Questions
Is the Sensor Sliding Door manufactured in India?
Which regions do you install and service in?
What power supply does the Sensor Sliding Door need?
Do you provide installation, spares and AMC?
How do I get a quote for the Sensor Sliding Door?
Is the Sensor Sliding Door certified?
