500 kg – 10,000 kg
Click to enlarge
Hydraulic Scissor Lifts & Lift Tables
Yadav Entrance Automation is a hydraulic scissor lift manufacturer in India, building goods, pit-mounted, mobile, car and warehouse scissor lift tables from 500 kg to 10,000 kg capacity. Every scissor lift is engineered for safe vertical material handling — loading-unloading bays, mezzanine transfer, press-tool changes and maintenance access — with hold-to-run controls and fail-safe hydraulics as standard.
| Rated Capacity | 500 / 1,000 / 2,000 / 5,000 / 10,000 kg |
| Travel Height | 1,000mm – 3,000mm (single/double/triple scissor) |
| Platform Size | 1,200×1,000mm to 3,000×2,000mm (custom) |
| Power Unit | 1.5–3.0 kW; 230V single-phase or 415V 3-phase |
Hydraulic Scissor Lifts Built for Indian Industry
Six engineering advantages that make Yadav Entrance Automation hydraulic scissor lifts the preferred choice for warehouses, automotive plants and production floors across India.
Capacity from 500 kg to 10,000 kg
Our hydraulic scissor lift range covers every load class — from 500 kg maintenance platforms to 10,000 kg heavy-duty lifts for die handling and press-tool changes in automotive plants. Single, double and triple-scissor designs deliver the right travel height for each capacity.
Fail-Safe Safety as Standard
Every scissor lift ships with a mechanical maintenance prop, velocity fuses on each cylinder for controlled descent on hose failure, pressure-relief valves preventing overload, and anti-shear toe guards. Hold-to-run controls stop motion the instant the operator releases.
Precision Hydraulics, Low Maintenance
Chrome-plated cylinder rods, IP55 power packs and German-profile seals deliver smooth, drift-free lifting cycle after cycle. The compact HPU mounts remotely or on-frame, and all wear parts are stocked nationally for rapid replacement.
Pit-Mounted or Mobile
Choose a flush pit-mounted scissor lift for smooth pallet roll-on at floor level, or a mobile scissor lift on castors for flexible maintenance and order-picking across the shop floor. Goods and warehouse configurations integrate with conveyors and mezzanines.
Custom Platform Sizes
Platform sizes from 1,200×1,000mm up to 3,000×2,000mm, with roller tops, turntables, tilting decks and safety rails to order. We design to your load footprint, travel height and pit dimensions — not a fixed catalogue size.
Pan-India Install & AMC
Our service network installs and maintains scissor lifts nationwide, with Annual Maintenance Contracts carrying a 4-hour emergency response SLA. One vendor for manufacture, installation, spares and service — no middlemen.
Types of Scissor Lifts We Manufacture
Seven scissor lift configurations covering every material-handling and access application. Each is built to order — tell us your load, travel height and duty cycle and we engineer to match.
Most Popular
Hydraulic Scissor Lift
The workhorse hydraulic scissor lift for vertical material transfer between levels. Smooth, drift-free lifting from 500 kg to 10,000 kg, powered by a compact HPU with fail-safe velocity fuses. Ideal for dispatch, assembly and inter-floor goods movement.
View details
Material Handling
Goods Scissor Lift
A heavy-duty goods scissor lift for moving palletised loads between floors, mezzanines and dispatch bays. Roller or chequer-plate decks, safety gates and interlocks let it serve as a compact alternative to a goods lift where a shaft isn't viable.
View details
Flush Floor
Pit-Mounted Scissor Lift
Installed in a recessed pit so the platform sits flush with the floor — pallet trucks and forklifts roll straight on with no ramp. The preferred pit-mounted scissor lift for loading-unloading docks and ergonomic assembly stations.
View details
Portable

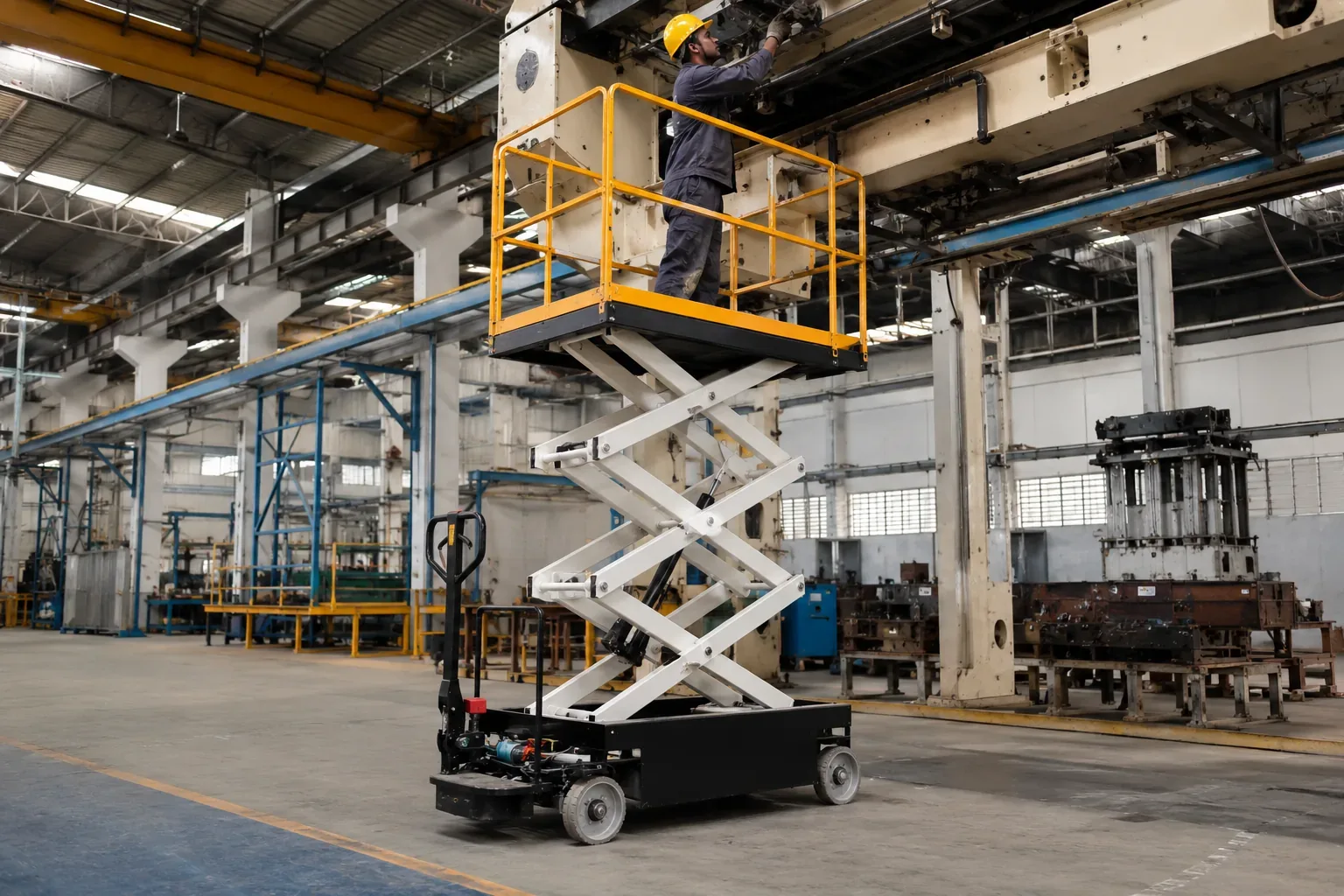

Mobile Scissor Lift
A mobile scissor lift on heavy castors with battery or mains power for flexible access and maintenance anywhere on the floor. Move it to the job instead of moving the job — ideal for multi-bay plants and order picking.
View details
Automotive

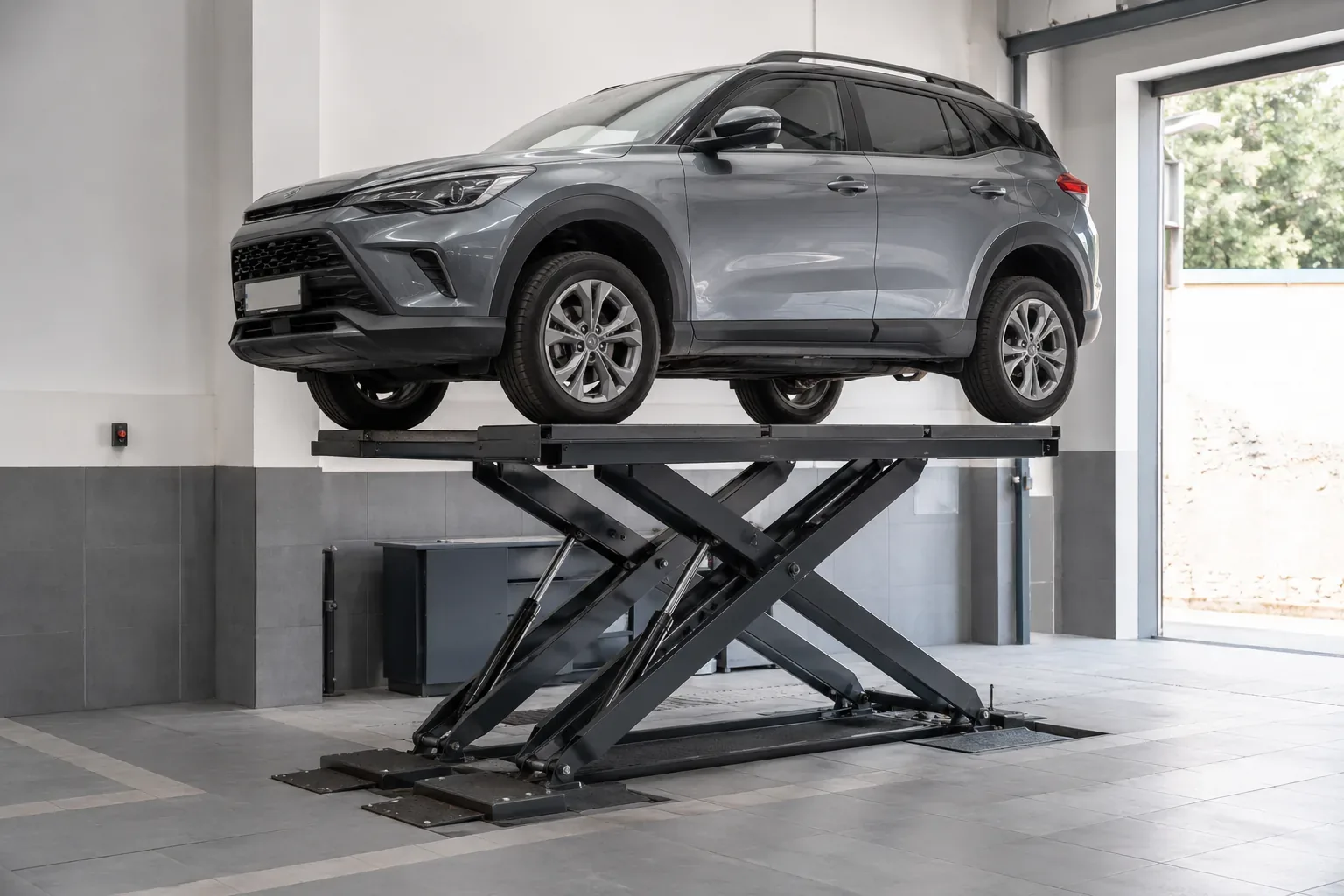

Car Scissor Lift
A low-profile car scissor lift for workshops, service centres and basement parking. Lifts vehicles up to 3,000–4,000 kg for under-body service or stack parking, with synchronised cylinders and a mechanical lock at every height.
View details
Logistics

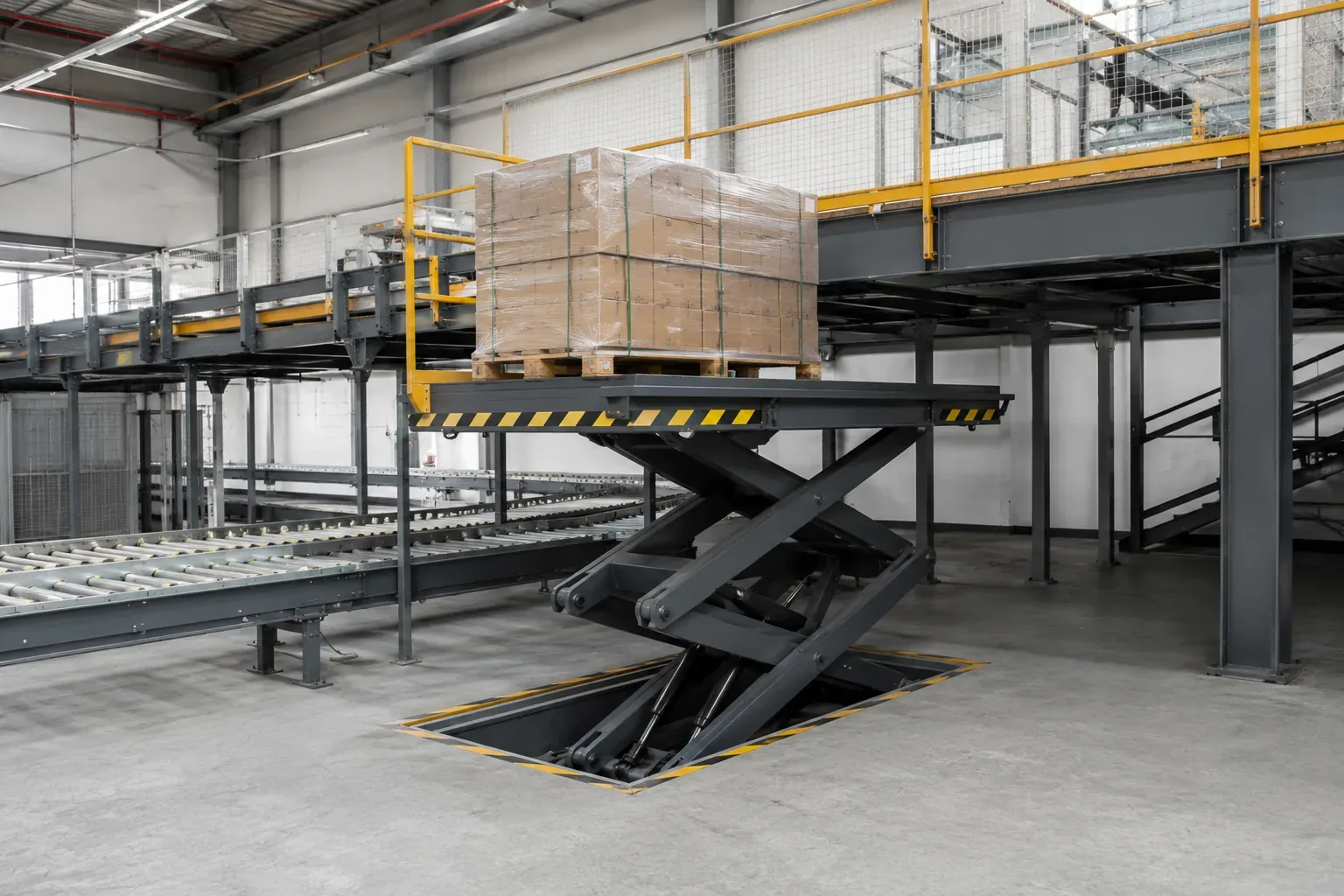

Warehouse Scissor Lift
A warehouse scissor lift engineered for high-cycle dispatch and mezzanine feeding. Pairs with dock levelers and conveyors to bridge height differences across the loading bay, with duty-rated power packs for continuous operation.
View details
Dock
Loading-Unloading Lift
A loading-unloading scissor lift that bridges truck-bed to floor height where a dock leveler pit isn't possible. Hydraulic platform raises pallets from ground to vehicle deck safely, replacing manual lifting and forklift double-handling.
View detailsWhere Scissor Lifts Are Used
Yadav Entrance Automation scissor lifts are deployed across India's warehousing, automotive, manufacturing and logistics sectors — each with specific load, height and duty-cycle requirements our engineers address at specification stage.
Mezzanine feeding, dispatch bay loading-unloading, and order-picking platforms in high-throughput distribution centres
Die handling, press-tool changes, and ergonomic assembly lifts on the line; car scissor lifts for service workshops
Inter-floor goods transfer, machine loading, and work-positioning lifts that bring components to ergonomic height
Mobile scissor lifts for safe elevated access to plant, lighting and overhead conveyors across multi-bay facilities
Palletised goods movement between storage and dispatch, replacing manual lifting and reducing handling injuries
Loading-unloading lifts at refrigerated docks where a pit isn't viable, bridging truck-bed to floor height
SS-clad, washdown-capable lift tables for GMP areas requiring clean, contamination-free vertical handling
Car scissor lifts for stack parking and under-body service in basements and multi-level service centres
Full Scissor Lift Specifications
Complete engineering data for the Yadav Entrance Automation hydraulic scissor lift range. All models are built to order — capacity, travel height and platform size are configured to your application.
| Parameter | Specification |
|---|---|
| Rated Capacity | 500 kg / 1,000 kg / 2,000 kg / 5,000 kg / 10,000 kg (custom on request) |
| Travel Height | 1,000mm (single) / 2,000mm (double) / 3,000mm (triple scissor) |
| Lowered Height | 200mm – 400mm (surface) / floor level (pit-mounted) |
| Platform Size (Standard) | 1,200×1,000mm; custom up to 3,000×2,000mm |
| Operating Mechanism | Hydraulic, double-acting cylinders with counter-balance |
| Power Unit (HPU) | 1.5 kW – 3.0 kW; 230V single-phase or 415V 3-phase; IP55 enclosure |
| Lifting Speed | Approx. 15–40 sec full travel (load & height dependent) |
| Platform Surface | Anti-skid chequer plate (6–8mm); roller-top or turntable optional |
| Frame Material | Structural steel / RHS sections — IS 2062 Grade B |
| Control | Hold-to-run push button + emergency stop; wireless pendant optional |
| Safety Devices | Maintenance prop, velocity fuse, pressure-relief valve, anti-shear toe guard, safety rails |
| Surface Finish | Epoxy primer (2 coats) + industrial enamel; hot-dip galvanized on request |
| Certifications | ISO 9001:2015, CE Marked (EU Machinery Directive 2006/42/EC) |
| Warranty | 2 years hydraulic system, 5 years structural frame |
Scissor Lift Variant Comparison
| Configuration | Capacity | Hydraulic (Goods) ⭐ Most Popular | Travel Height | Best For |
|---|---|---|---|---|
| Mobile Scissor Lift | 300–1,000 kg | Battery / mains | 1,000–1,500mm | Maintenance, picking |
| Hydraulic Scissor Lift | 1,000–2,000 kg | Pit or surface | 1,500–2,000mm | Inter-floor goods |
| Goods Scissor Lift | 2,000–5,000 kg | Roller / plate deck | 2,000–3,000mm | Mezzanine, dispatch |
| Car Scissor Lift | 3,000–4,000 kg | Low-profile | 1,800–2,000mm | Workshop, parking |
| Heavy-Duty / Loading-Unloading | 5,000–10,000 kg | Twin cylinder | 1,500–3,000mm | Die handling, dock |
Certified to International Standards
Our scissor lift range carries the certifications required by India's largest 3PL operators, multinational manufacturers and government procurement bodies.
9001
Quality management certification covering design, manufacture, installation and after-sales service of all scissor lifts and lift tables.
European conformity per EU Machinery Directive 2006/42/EC — required by multinational clients and confirming safety compliance.
2062
Structural steel to Indian Standard IS 2062 Grade B for scissor legs and base frames — certified load and fatigue performance.
2016
Installation methodology compliant with the National Building Code of India 2016 for industrial occupancy and safety clearance.
in India
100% manufactured at our registered Indian facilities — qualifies for government procurement preference and PSU tenders.
Scissor Lift Design + Quote in 24 Hours
No generic quotes, no run-around.
In-House Manufacturing
Every scissor lift manufactured under ISO 9001 quality control — no imported products, no middlemen.
Free Site Survey & Civil Drawing
Our engineers survey your floor or pit and supply a full civil drawing for your contractor — at no charge.
AMC Available Nationwide
Annual Maintenance Contracts covering all scissor lifts and material-handling equipment with a 4-hour emergency response SLA.
Choosing scissor lifts: what actually decides the specification
A scissor lift is a hydraulic platform that raises a load vertically on a scissor mechanism. The right one is decided by the opening and how it is used, not by the catalogue. These are the things worth settling before anyone quotes.
What to measure
- Clear opening width and height — the daylight opening the vehicle or person passes through, not the hole in the wall.
- Headroom above the opening — decides which products are possible at all.
- Side-room, both sides — guides, tracks and motors live here, and it is rarely equal on both sides.
- Power at the position — 230V single-phase or 415V three-phase, 50 Hz.
- Cycles per shift — the most under-specified figure on a typical enquiry.
- Environment — temperature, dust, washdown, coastal air or a hygiene requirement.
The full scissor lifts range
- Hydraulic Scissor Lift — The workhorse hydraulic scissor lift for vertical material transfer between levels.
- Goods Scissor Lift — A heavy-duty goods scissor lift for moving palletised loads between floors, mezzanines and dispatch bays.
- Pit-Mounted Scissor Lift — Installed in a recessed pit so the platform sits flush with the floor — pallet trucks and forklifts roll straight on with no ramp.
- Mobile Scissor Lift — A mobile scissor lift on heavy castors with battery or mains power for flexible access and maintenance anywhere on the floor.
- Car Scissor Lift — A low-profile car scissor lift for workshops, service centres and basement parking.
- Warehouse Scissor Lift — A warehouse scissor lift engineered for high-cycle dispatch and mezzanine feeding.
- Loading-Unloading Lift — A loading-unloading scissor lift that bridges truck-bed to floor height where a dock leveler pit isn't possible.
Where scissor lifts are typically installed
We build scissor lifts for warehouses, production floors, mezzanines and maintenance bays.
Sectors we supply
- Warehousing and logistics — distribution centres, 3PL facilities and dispatch docks.
- Cold chain — cold stores, freezer rooms and temperature-controlled dispatch.
- Automotive and engineering — component plants, press shops and assembly lines.
- Pharmaceutical and clean manufacturing — controlled and hygiene-critical areas.
- Infrastructure and construction — plant perimeters, site structures and civil scopes.
- Commercial and institutional — offices, campuses, hospitals and parking facilities.
What drives the cost
We quote per project rather than publishing prices. The figure moves with the rated capacity, the platform size, the travel height and the duty cycle. Send the measurements above and an engineer returns a drawing and a written quotation. Talk to an engineer →
Standards, materials and what we certify
- ISO 9001 — our quality management system is certified to it.
- CE marking on applicable products — a manufacturer's declaration of conformity, not a quality grade.
- IS 2062 structural steel for fabrication, gates and structures.
- IS 6248 for metal rolling shutters.
- EN 1634 as the reference for fire-resistance testing.
- Make in India and GST registered — relevant to government and PSU procurement.
- 230V single-phase / 415V three-phase, 50 Hz — standard Indian industrial mains.
Reference sources: European Commission, CE marking · Bureau of Indian Standards
From enquiry to handover
- Enquiry. Opening sizes, site location and application. An engineer picks it up.
- Site survey. We measure the clear opening, headroom, side-room and power position.
- Drawing and quotation. Equipment, safety schedule, electrical requirement and a written delivery date.
- Manufacture at Neemrana. Built to the approved drawing and the measured opening.
- Installation and commissioning. Fitted and tested by our own team through full travel with safety devices live.
- Handover, spares and AMC. Operating instructions on site, then service through the nearest team.
Explore the full product range, the sectors we serve, our delivered installations, or the areas we cover.
Scissor Lifts — frequently asked questions
Who manufactures scissor lifts in India?
Yadav Entrance Automation Pvt. Ltd. manufactures scissor lifts in India, at our plant at Neemrana, Rajasthan on the Delhi-Jaipur NH-48 corridor. We have been building entrance automation equipment since 2011, with more than 500 installations across over 50 cities. Equipment is made to the measured opening rather than to a catalogue size, then installed and commissioned by our own engineers.
What is a scissor lift?
A scissor lift is a hydraulic platform that raises a load vertically on a scissor mechanism. It is specified against the opening it serves and the way that opening is used, so two openings of the same width can need different equipment. We build scissor lifts for warehouses, production floors, mezzanines and maintenance bays.
What does a scissor lift cost?
We quote per project rather than publishing a price, because the figure moves with the rated capacity, the platform size, the travel height and the duty cycle. Send the opening dimensions, the site location and how the opening is used, and an engineer will come back with a drawing and a written quotation. That is faster than a list price that would need revising once the site is measured.
Do you supply scissor lifts near me?
We install and service across North and West India, with the plant at Neemrana and teams in Delhi NCR and Gujarat. Installations to date cover more than 50 cities, concentrated in the Delhi-Jaipur corridor, Haryana, Rajasthan and Gujarat. Tell us the site location with your enquiry and we will confirm coverage before quoting.
Can scissor lifts be motorised or automated?
Yes, where the product supports it. Motorised operation is specified against the weight being moved and the number of cycles per day, not simply added on. The drive, the control panel and the safety devices are listed on the technical drawing you approve before manufacture, so nothing about the automation is a surprise on site.
What power supply is needed?
Standard Indian industrial mains: 230V single-phase or 415V three-phase at 50 Hz. Which one applies depends on the product, the size of the opening and the duty cycle. The requirement is confirmed on the approved drawing so your electrical contractor can position the supply and isolator before delivery.
What measurements do you need to quote for scissor lifts?
Clear opening width and height first — the daylight opening, not the wall opening. Then the headroom above the opening and the free side-room each side. Add the power available at the position, how many openings, and roughly how often each is used in a shift. Those figures let an engineer rule out the wrong products before visiting.
Do you handle installation, or only supply?
We manufacture, install and commission with our own team, and we do not sub-contract installation of our own equipment. How well a unit is fitted to its opening decides how long it lasts, so it is not work we hand off. Handover includes operating instructions on site.
Do you provide service, spares and AMC?
Yes. We supply genuine spares and offer Annual Maintenance Contracts for the equipment we manufacture. On high-cycle equipment maintenance matters more than most buyers expect, because wear tracks cycles rather than calendar age. Tell us the site and the equipment and we will route it to the nearest service team.
Which standards and certifications apply?
Our manufacturing is certified to ISO 9001 and applicable products are CE marked. Structural steelwork commonly references IS 2062 and rolling shutters IS 6248, both published by the Bureau of Indian Standards; fire-resistance testing is commonly referenced to EN 1634. If your specification names a standard, send the clause with the enquiry so it is written into the drawing.
Can you make scissor lifts to a non-standard size?
Yes, and most industrial openings are non-standard. Equipment is built to the measured opening rather than to a catalogue size. We take the clear width, clear height, headroom and side-room on site, then confirm the achievable size on the drawing before manufacture begins.
How long does manufacture and delivery take?
It depends on the product and whether the opening is standard or bespoke, and it moves with material availability and the current order book. Rather than quote a general figure that may not hold, we confirm a delivery date in writing with the quotation.
Do you work with contractors, consultants and PSUs?
Yes. We supply end users directly and also work as a vendor to main contractors, PMCs and design consultants. We are GST registered and manufacture under Make in India, which matters for government and PSU procurement. For tendered work we can provide drawings, product data and the compliance documentation the specification calls for.
What safety devices are included?
For powered equipment, typically safety photocells across the opening, a safety edge where applicable, limit switches at both travel ends, and a manual release for use during a power cut. Vehicle equipment can add loop detectors. The exact schedule is listed on the drawing you approve, so check that rather than assuming a standard set.
How do I get a quote for scissor lifts?
Use the enquiry form on this page and the details reach our team directly, or call and send a WhatsApp message on +91 95492 20707, or email sales@yadaventranceautomation.com. If you already hold drawings or a specification, say so and an engineer will respond rather than a generic reply.
